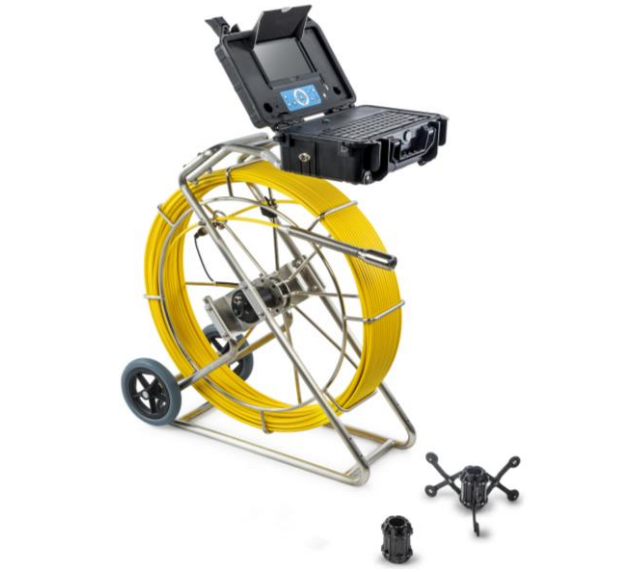

TvbTech 3299FB Sewer Drain Pipe Inspection Camera System (80m cable, 752Hx 582V pixels, Φ38mm)
Manufacturer: TvbTech Model: 3299FB P/N: 3299FB(80m) - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Camera Head
Camera Size: Φ38mm×81mm（main body）
Camera Total Length: 318mm
Sensor: 1/3" CMOS, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Transmitter: 512hz built-in(optional)
Self leveling: Built-in
F℃us Distance: 12cm (approx)
Depth-of-Field: 120cm(approx)
Front Lens: Sapphire glass
Water-Proof: 20m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12×LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
80M fiberglass push rod cable with on-screen distance counter
Dia. of push cable: 9mm
LCD Monitor
Screen: 7-inch 16:9 Super bright HD color LCD screen
Resolution: 1024×600 pixels R.G.B
Mirror and Flip: support image mirror, and flip
Video Resolution: CVBS D1
Video Encoding: H.264
Photograph: 1920×1080
Audio Recording: Support L℃al Sound
Output: TV and Audio output
External memory: support SD memory card up to 64GB
Data output: USB 2.0 to PC
LED Driver: Built-in dimmer
Play back: Video,Photo and Audio
On-screen date and time
On-screen meter/ft. distance display
Battery Capacity: 7.4V 5200mAh Li-ion Battery
Power Supply: DC 12V input
Life/Charge time: 5/8 hours
Language: Simplified Chinese, English, Traditional Chinese, Japanese, Kor ean, Russian, German, French, Italian, Spanish, Portuguese, Thai
