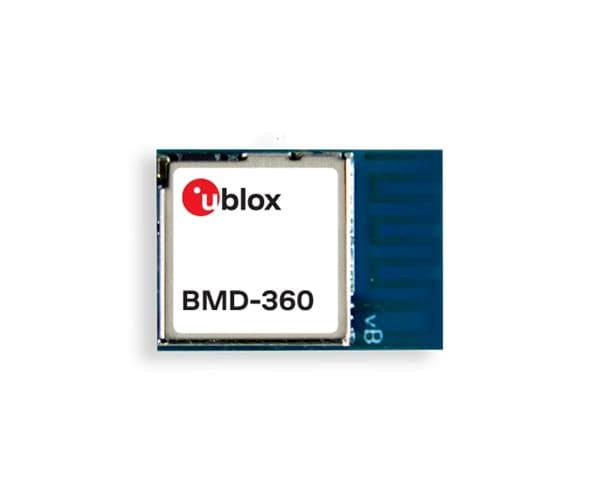

u-blox BMD-360-A-R Bluetooth Modules MOD BLE 5.1 NORDIC nRF52811 SoC
Manufacturer: u-blox Model: BMD-360-A-R - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Core: ARM Cortex M4
Width: 9.8 mm
Height: 1.9 mm
Length: 14 mm
Antenna: Integrated
Protocol: BLE, Bluetooth 5.1
Data Rate: 2 Mb/s
Frequency: 2.43 GHz
Shielding: Unshielded
Dimensions: 14 mm x 9.8 mm x 1.9 mm
Modulation: GFSK
Memory Size: 192 kB
Sensitivity: - 97 dBm
Unit Weight: 7.792 g
Output Power: 4 dBm
Interface Type: I2C, SPI, UART
Mounting Style: SMD/SMT
Frequency Range: 2.36 GHz to 2.5 GHz
Moisture Sensitive: Yes
Modulation Technique: GFSK
Receiver Sensitivity: - 97 dBm
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.7 V
Operating Supply Voltage: 1.7 V to 3.6 V
Supply Current Receiving: 11.2 mA
Supply Current Transmitting: 15.4 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
