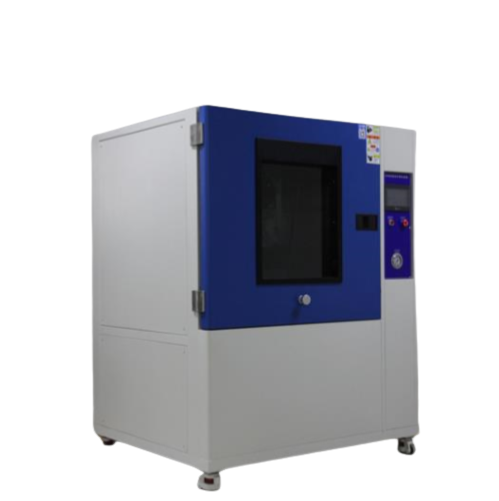

Uby Tech IPX9 High Temperature & High Pressure Spray (Box Type)
Manufacturer: Uby Tech Model: IPX9 P/N: UP-6198-FS9K-1000L Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Used to test the IPX9 waterproof level of the product
Specifications
External size: About L1450*D1230*H1820mm
Inner size: L1000*D1000*H1000mm
Number of nozzles: 4个
Orifice angle: 0°, 30°, 60°, 90° (Vertical direction)
Nozzle distance: 100-200mm (Can be adjusted manually)
Sample turntable diameter: ￠400mm
Turntable lifting method: manual adjustment Water spray flow: 14~16L/min
Spray water temperature: RT (25℃); 80±5℃ (Deviation temperature can be negotiated)
Water spray pressure: 8000~10000Kpa
Water jet impact: 0.9~1.2N (Force calibration system)
Turntable load-bearing: 50KG
Turntable rotation speed: 1~10 r/min (Can be set)
Test time: 120S (each location 30S)
Power supply: 380V, 50Hz
Test sample power: 220V, 50Hz
Power: 18.0KW
Safety protection function: Leakage protection, water shortage protection, short circuit protection
