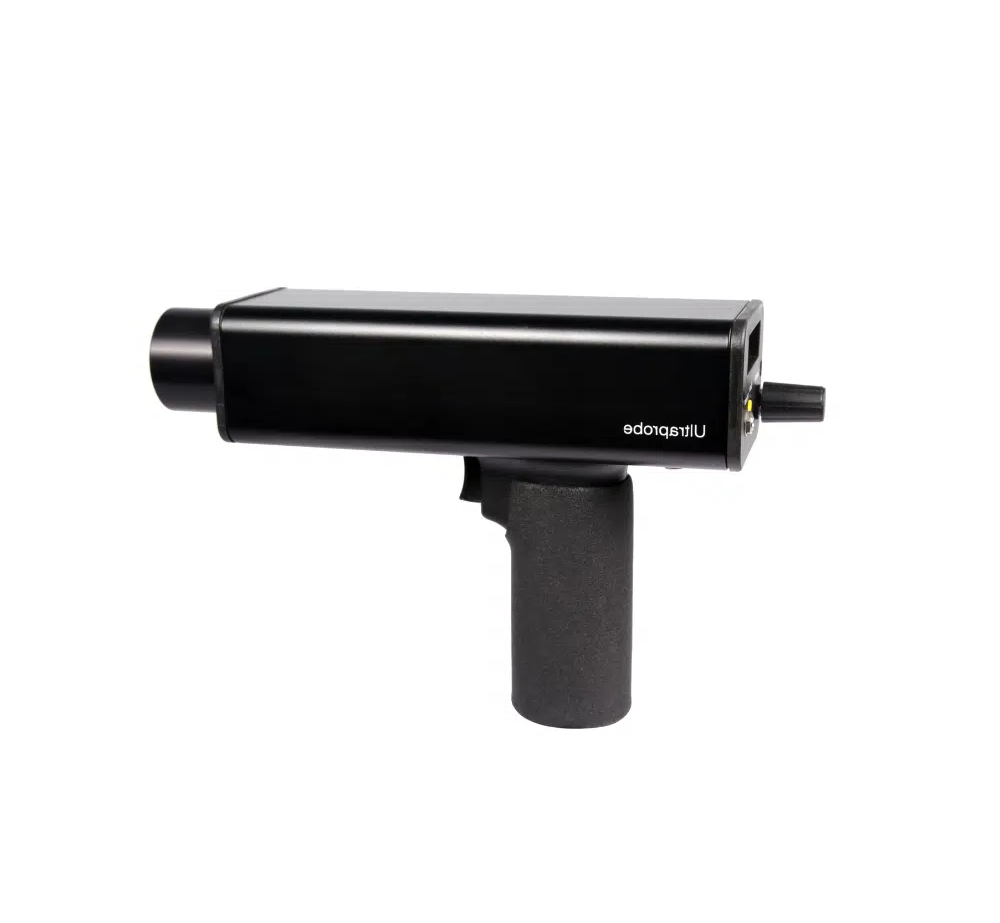

UE Systems Inc Ultraprobe 9000 Ultrasonic Inspection System for predictive maintenance (20 KHz -100 KHz)

Construction: Hand-held pistol type made with coated aluminum and ABS plastic

Circuitry: Solid State SMD Digital Circuitry with temperature compensation

Frequency Range: 20 KHz to 100 KHz (tunable in 1 KHz increments)

Response Time: < 10 ms

Display: 16 x 2 LCD with LED Backlight

Memory: 400 storage locations

Battery: NIMH Rechargeable

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Outputs: Calibrated heterodyned output, decibel (dB) frequency, USB data output

Probes: Trisonic Scanning Module and Stethoscope Module

Headset: Deluxe noise attenuating headphones for hard hat use

Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph

Sensitivity: Detects 0.127 mm (0.005”) diameter leak @ 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.)

Threshold*: 1 x 10^-2 std. cc/sec to 1 x 10^-3 std. cc/sec.

Dimensions: Complete kit in Zero Halliburton aluminum carrying case 47 x 37 x 17 cm (18.5” x 14.5” x 6.5”)

Weight

+ Pistol Unit: 0.9 kg (2 lbs.)

+ Complete carrying case: 6.4 kg (14 lbs.)

Display Modes: Real Time, Snap Shot, Peak Hold, and Storage Display
