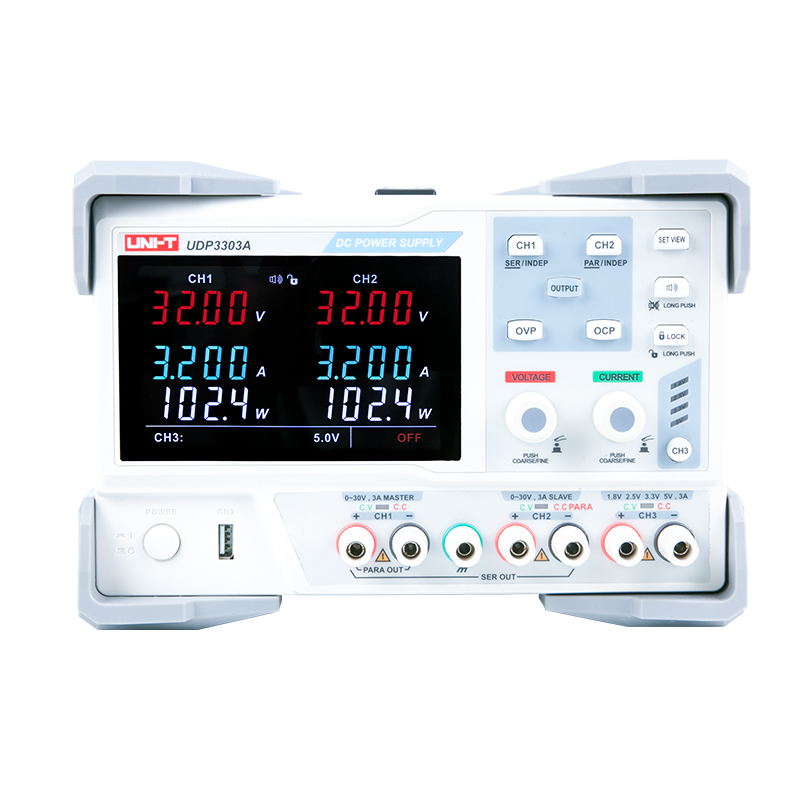

UNI-T UDP3303A Industrial Linear DC Power Supply (3CH,30V,3A,195W)
Manufacturer: UNI-T Model: UDP3303A Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Output voltage: 0~30V (CH1/CH2)
Output current: 0~3A (CH1/CH2)
Output power: 195W
Accuracy:
+ Voltage: ±(0.1%+30mV)
+ Current: ±(0.3%+5mA)
Display: 4 bit
Interfaces: USB Host (5V/2A, charging port only), digital interface
Programmable: No
Over voltage/current protection: Yes
Over temperature protection: Yes
Ripple (20Hz~20MHz): Voltage: ≤1mVrms; Current: ≤3mArms
Power: Input voltage: AC 100V/120V/220V/230V±10%, 50Hz/60Hz
Product net weight: 8.5kg
Product size: 143mm x 190mm x 327mm
Standard accessories: Power cord, output cables, USB cable (UDP3303C), PC software CD
