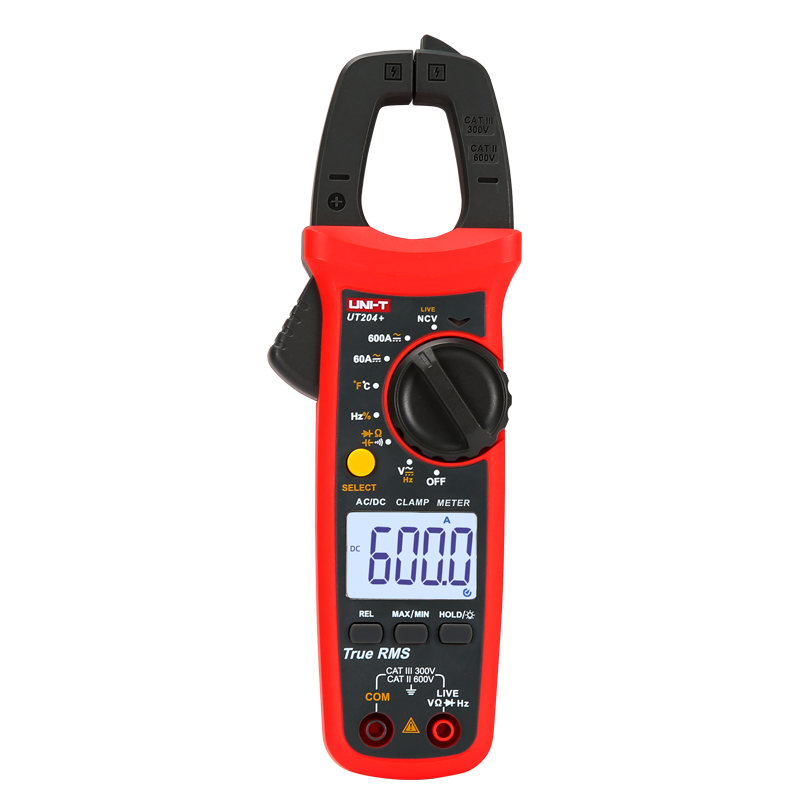

UNI-T UT204+ Digital clamp meter (AC/DC 600A,True RMS)
Manufacturer: UNI-T Model: UT204+ Origin: China - Contact
- In stock: 34 Unit
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
AC current (A): 600A ±(2.5%+5)
DC current (A): 600A ±(2.5%+5)
AC voltage (V): 600V ±(0.8%+5)
AC voltage frequency(Hz): 10Hz~60kHz ±(0.5%+2)
DC voltage (V): 600V ±(0.5%+2)
Resistance (Ω): 60MΩ ±(0.8%+2)
Capacitance (F): 60mF ±(4%+5)
Temperature (°C): -40°C~1000°C ±(1.5%+5)
Frequency (Hz): 10Hz~10MHz ±(0.1%+4)
Power: 1.5V battery (R03) x 2
Display: 37mm x 25mm
Product color: Red and grey
Product net weight: 235g
Product size: 215mm x 63mm x 36mm
Standard accessories: Batteries, test leads, Themocouple
Features
Display count: 6000
Auto range: Yes
Jaw opening: 28mm
True RMS: Yes
Diode test: Yes
Continuity buzzer: Yes
NCV: Yes
MAX/MIN: Yes
Relative mode: Yes
Zero mode: Yes
Live wire test: Yes/-
Data hold: Yes
Auto power off: Yes
LCD backlight: Yes
Input protection: Yes
Input Impedance: ≈10MΩ
Category ratings: CAT II 600V, CAT III 300V
Drop test: 1m
