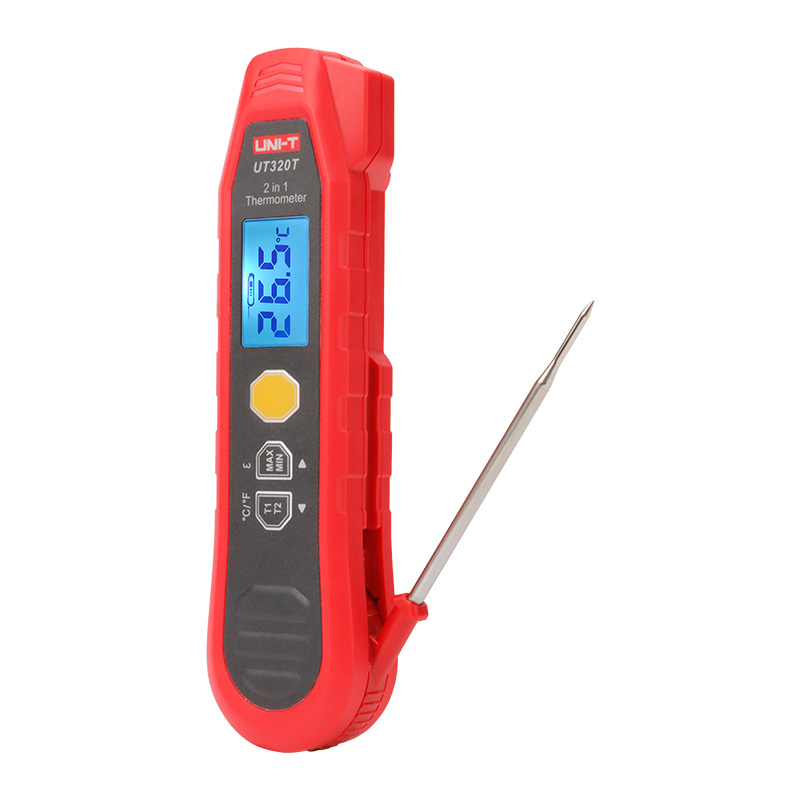

UNI-T UT320T 2-in-1 Thermometer (-40℃~300℃)

LCD size: 18*28mm

LCD type: FSTN

Infrared measurement:

Measuring range: -40℃~300℃ (-40℉~572℉)

Temperature: Range   Accuracy

-40℃≤t≤0℃: ±(1.5+0.1×|t|)℃

0℃＜t≤300℃: ±2.0℃ or ±0.02×t℃ whichever is greater

-40℉≤t≤32℉: ±(4.0+0.1×|t-32|)℉

32℉＜t≤572℉: ±4.0℉ or ±0.02×t℉ whichever is greater

Temperature coefficient: ±0.1℃/℃ or ±0.1%/℃ whichever is greater

Distance to spot ratio (D: S): 0.334027777777778

Emissivity: Adjustable (0.1~1.0)

Spectral range: 5μm~14μm

Response time: ≤500ms (95% of reading)

Repeatability: 1.0℃ or 1.0% whichever is greater;   (2.0℉ or 1.0% whichever is greater)

Laser: Class 2, single laser, power＜1mW, wavelength 650±20nm

Operating time: About 30h (laser and backlight on)

Probe measurement

Measuring range: -40℃~300℃ (-40℉~572℉)

Accuracy: Range Accuracy

-40℃≤t＜0℃: ±2.0℃

0℃＜t≤300℃: ±1.0℃ or ±0.01×t℃ whichever is greater

-40℉≤t≤32℉: ±4.0℉

32℉＜t≤572℉: ±2.0℉ or ±0.01×t℉ whichever is greater

Probe type: NTC

Minimum measuring depth: 12.7mm

Operating time: About 180h (backlight on)

Operating temperature: 0℃~50℃(32℉~122℉)

Storage temperature: -20℃~60℃(-4℉~140℉)

Operating humidity: <90%Rh (non-condensing)

Highest operating altitude: 2000m

IP rating: IP54

Drop test: 2m

Auto power off time: 10min

Data hold: √

L℃k measurement: √

Unit conversion (℃/℉): √

Max/Min/Difference: √

General Characteristics

Product size: 155*42*22.5mm

Product weight: About 110g (with batteries)

Battery type: 2 * 1.5V AAA
