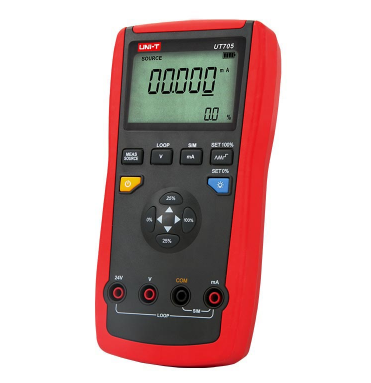

UNI-T UT705 Single Function Loop Calibrator (30.000VDC, 24.000mA DC)
Manufacturer: UNI-T Model: UT705 - Contact
- In stock: 11 Unit
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
DC voltage (V): 30.000V ±(0.02+2)
DC current (A): 24.000mA / ±(0.02+2)
Loop current: 24.000mA / ±(0.02+2)
Source accuracy
DC current (source): 24.000mA/±(0.02+2)
DC current (simulate): 24.000mA/ ±(0.02+2)
Features
Loop power function
Voltage: 24V
Accuracy: 10%
Ramp functions
Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions
Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range
General Characterisitics
Power: 9V battery (6F22)
Display: 63mm x 40mm
Product color: Red and grey
Product net weight: 410g
Product size: 96mm x 193mm x 47mm
Standard accessories: Test leads, battery
