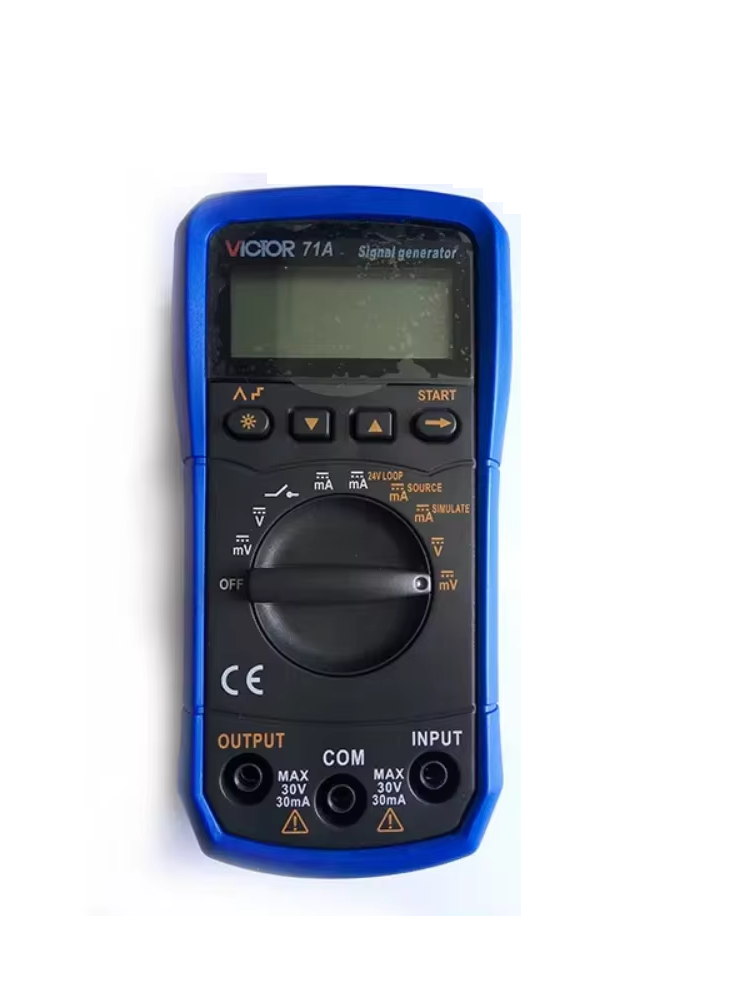

VICTOR 71A Signal Generator (0～110mVDC, 0 ～ 10VDC, 0 ~ 22mADC)
Manufacturer: VICTOR Model: 71A - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
SOURCE
DC millivolt
Range: 0～110mV
Basic accuracy: 0.2%+4dgt
Resolution: 100uV
DC voltage
Range: 0 ～ 10V
Basic accuracy: 0.2%+4dgt
Resolution: 10mV
DC current
Range: 0~22mA
Basic accuracy: 0.2%+4dgt
Resolution: 0.01mA
Sink current
Range: 0~22mA
Basic accuracy: 0.2%+4dgt
Resolution: 0.01mA
External power supply: 5 ～ 28V
MEASURE
DC millivolt Range: -10~110mV
Basic accuracy: 0.2%+4dgt
Resolution: 100uV
DC voltage
Range: -5~30V
Basic accuracy: 0.2%+4dgt
Resolution: 10mV
DC current
Range: 0~22mA
Basic accuracy: 0.2%+4dgt
Resolution: 0.01mA
Loop power
Range: 24V
Basic accuracy: 10%
Limit current: 25mA
