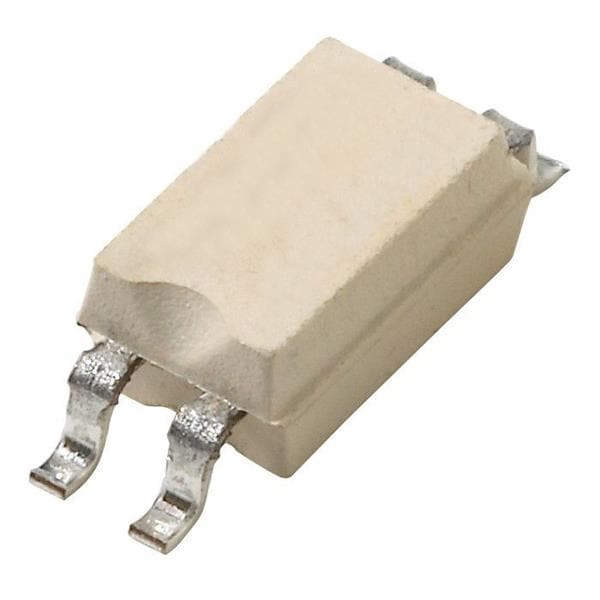

Vishay General Semiconductor TCLT1003 Transistor Output Optocouplers Phototransistor Out
Manufacturer: Vishay General Semiconductor Model: TCLT1003 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 7.5 mm
Height: 2 mm
Length: 4.1 mm
Fall Time: 4.7 us
Rise Time: 3 us
Output Type: NPN Phototransistor
Unit Weight: 80 mg
Configuration: 1 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.6 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 100 %
Pd - Power Dissipation: 250 mW
Maximum Collector Current: 50 mA
Current Transfer Ratio - Max: 200 %
Current Transfer Ratio - Min: 100 %
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Emitter Saturation Voltage: 300 mV
