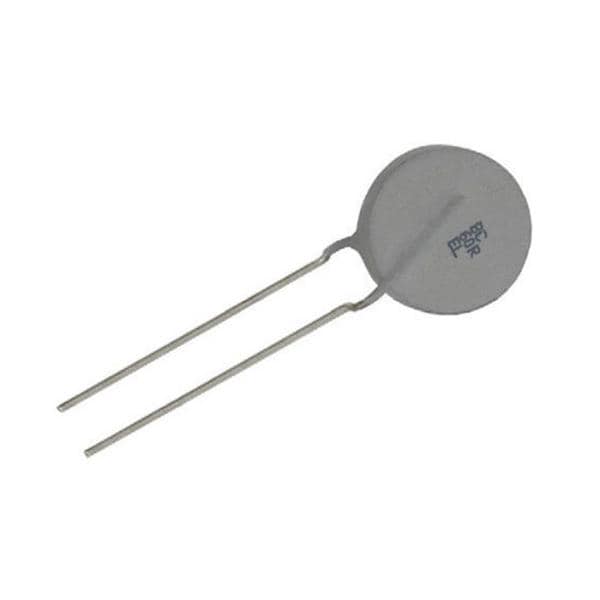

Vishay PTCEL67R251SBE PTC Thermistor PTC EL LDD 16D5 250R 850 160 B E3
Manufacturer: Vishay Model: PTCEL67R251SBE - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 7.5 mm
Height: 20 mm
Diameter: 16.5 mm
Tolerance: 30 %
Resistance: 250 Ohms
Lead Spacing: 10 mm
REACH - SVHC: Details
Lead Diameter: 0.8 mm
Mounting Style: PCB Mount
Termination Style: Radial
Voltage Rating AC: 600 VAC
Voltage Rating DC: 850 VDC
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
