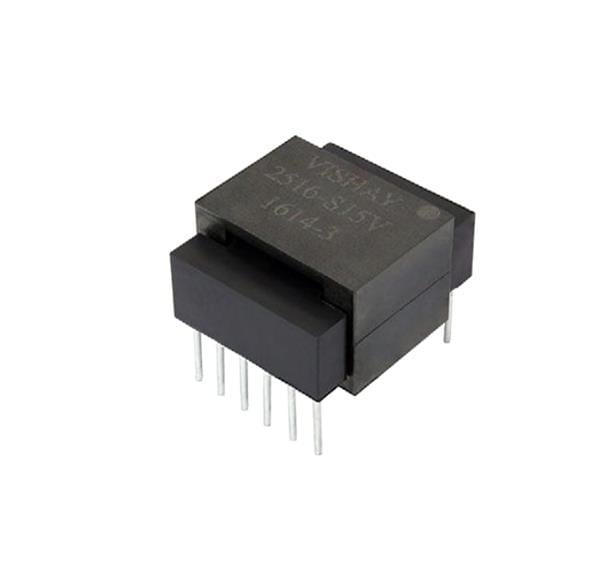

Vishay SGTPL-2516-0001P Space Grade MAT TRAC, TRANSFORMER, FLYBACK, 35W, 22
Manufacturer: Vishay Model: SGTPL-2516-0001P - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 25.65 mm
Height: 16.51 mm
Length: 29.72 mm
Inductance: 30 uH
Turns Ratio: 7 : 2 : 4.5
Power Rating: 35 W, 150 W
Mounting Style: PCB Mount
Primary Winding: Single Primary Winding
Secondary Winding: Dual Secondary Winding
Termination Style: Through Hole
Operating Frequency: 250 kHz
Primary Voltage Rating: 22 V to 36 V
Secondary Current Rating: 600 mA, 5.5 A
Secondary Voltage Rating: 5 V, 12 V
Maximum Operating Temperature: + 130 C
Minimum Operating Temperature: - 55 C
