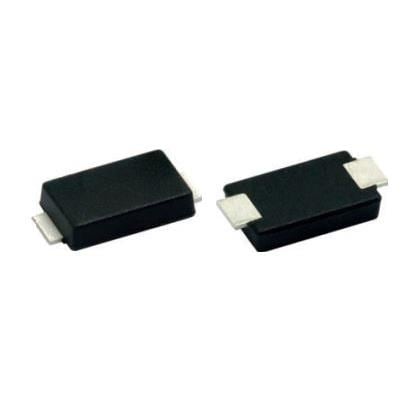

Vishay TA6F56CAHM3/H ESD Suppressors Diode, TVS, bidir, 600W, 56V, auto-grade, SlimSMA (DO-221AC)
Manufacturer: Vishay Model: TA6F56CAHM3/H - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Polarity: Bidirectional
Working Voltage: 47.8 V
Clamping Voltage: 77 V
Breakdown Voltage: 56 V
Termination Style: SMD/SMT
Number of Channels: 1 Channel
Pd - Power Dissipation: 8 W
Ipp - Peak Pulse Current: 7.8 A
Vesd - Voltage ESD Air Gap: 30 kV
Vesd - Voltage ESD Contact: 30 kV
Maximum Operating Temperature: + 185 C
Minimum Operating Temperature: - 65 C
