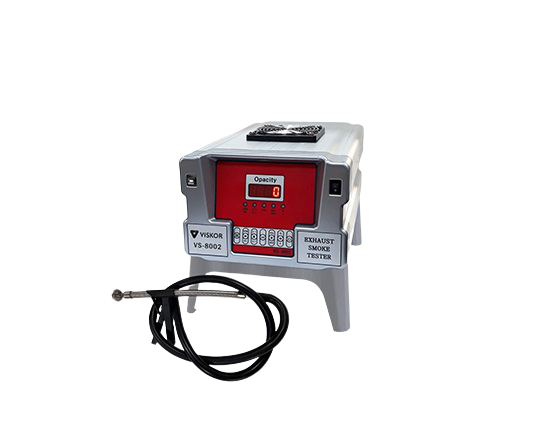

VISKOR VS-8002 Opacity Emission tester (0–9.99m; 0.10%)
Manufacturer: VISKOR Model: VS-8002 Origin: Korea Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Measuring items: Smoke opacity ( %, k [m-1] ), RPM (optional), Oil temperature (optional)
Measurement method: Light extinction method (Partial-flow sampling type)
Light source: Green LED(565nm)
Detector: Photodiode
Length/Diameter (cell): Length: 215 mm(±0.5 mm) / Diameter 21 mm
Measuring range: 0.0 - 99.9% (K: 0 – 9.99 m )
Accuracy: 0.10%
Warm-up time: within 5 minutes
Response time: <0.5±0.015 sec.
Physical response time: 0.2 sec(Periodic response)
Power: AC 110V/220V, 50/60Hz
Temperature: -10 ~ 40℃
Pressure inside the chamber: Below 0.70 kPa
Dimension: 260(W) x 390(D) x 300(H) mm
Weight (Net/Gross): 5.6kg / 10kg
Option: RPM meter, Oil temperature meter, Remote controller, Standard filters
