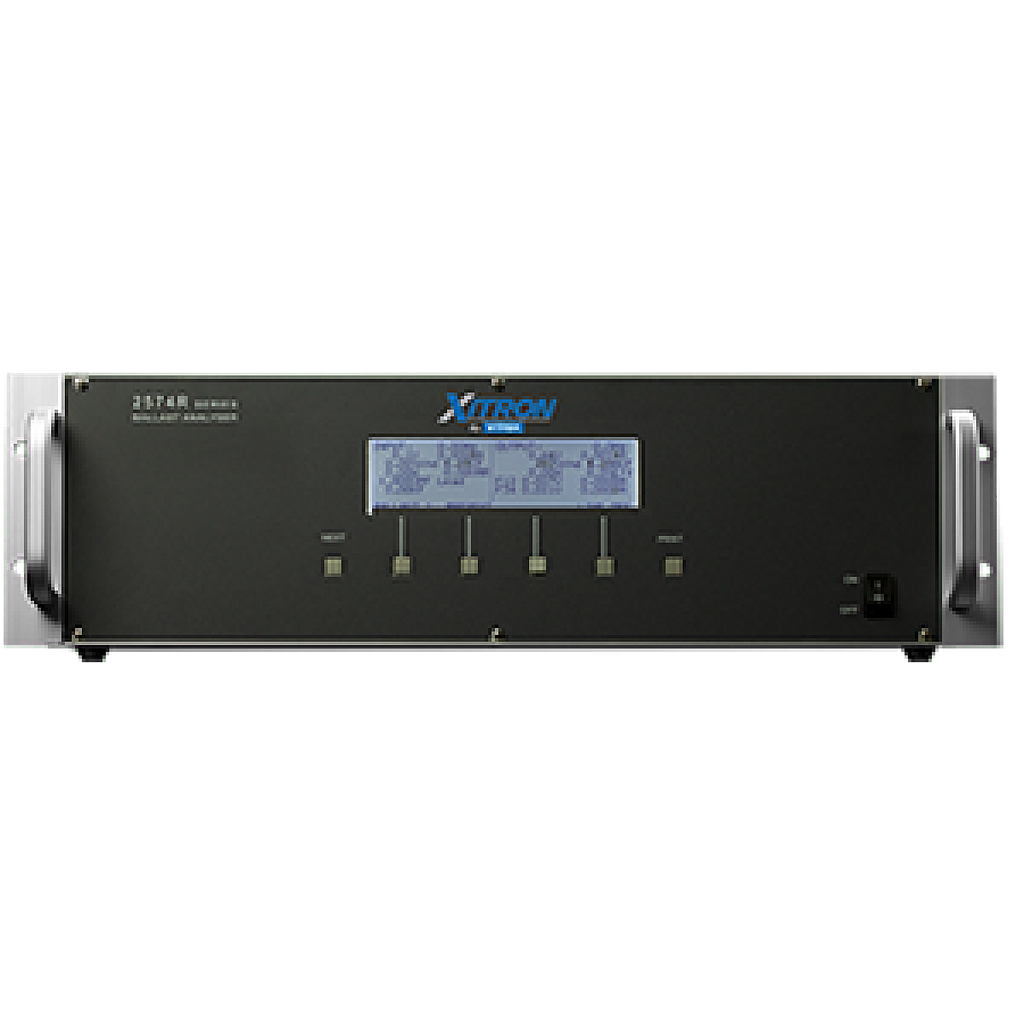

Vitrek 822-2572R Two Tube Ballast Analyzers (Two Tube)
Manufacturer: Vitrek Model: 822-2572R - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Two Tube
LINE INPUT:
Volts/Current: 0.1%
Power: 0.15%
BALLAST OUTPUT:
Volts/Current: 0.1% (Line); 0.3% (50kHz); 5% (1MHz)
Power: 0.15% (Line); 0.5% (50kHz); 10% (1MHz)
HARMONICS:
Line and Ballast Output Harmonics
SAMPLING:
Up to 2 MSPS continuous sampling
GRAPHICAL RESULTS:
Harmonics Barcharts
Historical Data Logging (2 sec. to 10 days, 0.5% time resolution)
PHYSICAL SPECIFICATIONS:
Power Input: 80-265 Vrms autoselect, 50/60/400 Hz @100 VA max
Size (HxWxD): 4-1/2” x 11-1/2” x 10-1/2”
Weight: 2574R: 16 lbs. (7.3 kg)
Operating Range: 0°C to 45°C, <85% RH @ 40°C non-condensing
Storage Range: -30°C to 65°C, <95% RH @ 40°C non-condensing
Digital Interfaces (standard):
IEEE488.1: Full talk/listen and controller capabilities
Parallel: IEEE1284, unformatted text or PCL
