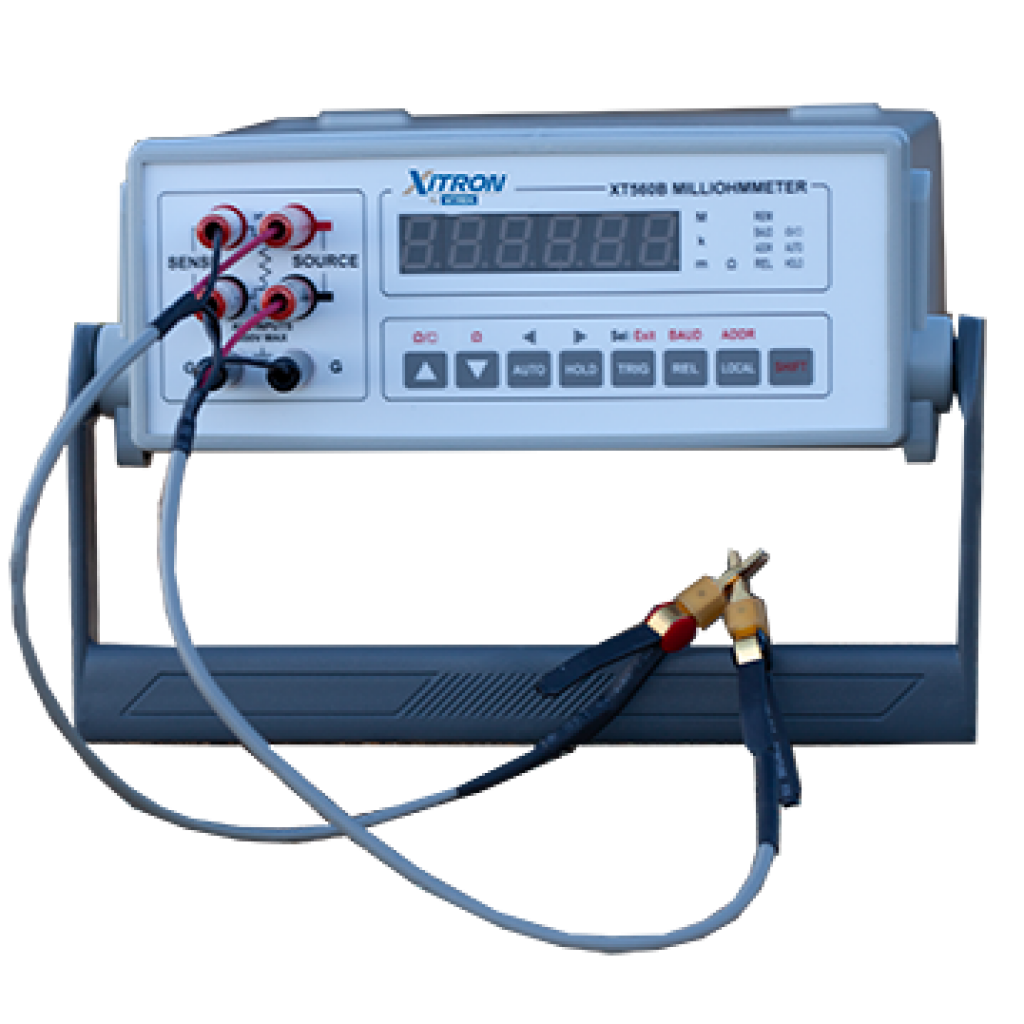

Vitrek XT560B Digital Milliohmmeter (10μΩ - 30MΩ)

Maximum Display of 33000

Wide Measurement Range: From 10μΩ resolution to 30MΩ full scale

High Accuracy ±0.02% (most ranges)

Auto/Manual Function

RS-232 Interface Standard

Measurement Speed 10 samples/sec.

HOLD, REL Function

Physical Power input: 90VAC to 260VAC, 50/60 Hz

Size: 8.9cm x 24.7cm x 28.0cm (HxWxD)

Weight: 2.27 kg (5.0lbs)

Operating range: 0°C to 50°C, <80% RH non-condensing

Storage range: -20°C to 70°C non condensing

Unit is supplied with one set of Kelvin test leads for 4-terminal measurements

Details

Datasheet


Manual
