Vitrox V910i : Advanced Robotic Vision System (ARV)

  • Manufacturer: Vitrox
    Model: V910i
    Origin: Malaysia
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Vitrox

Model: V910i

Warranty: 12 months

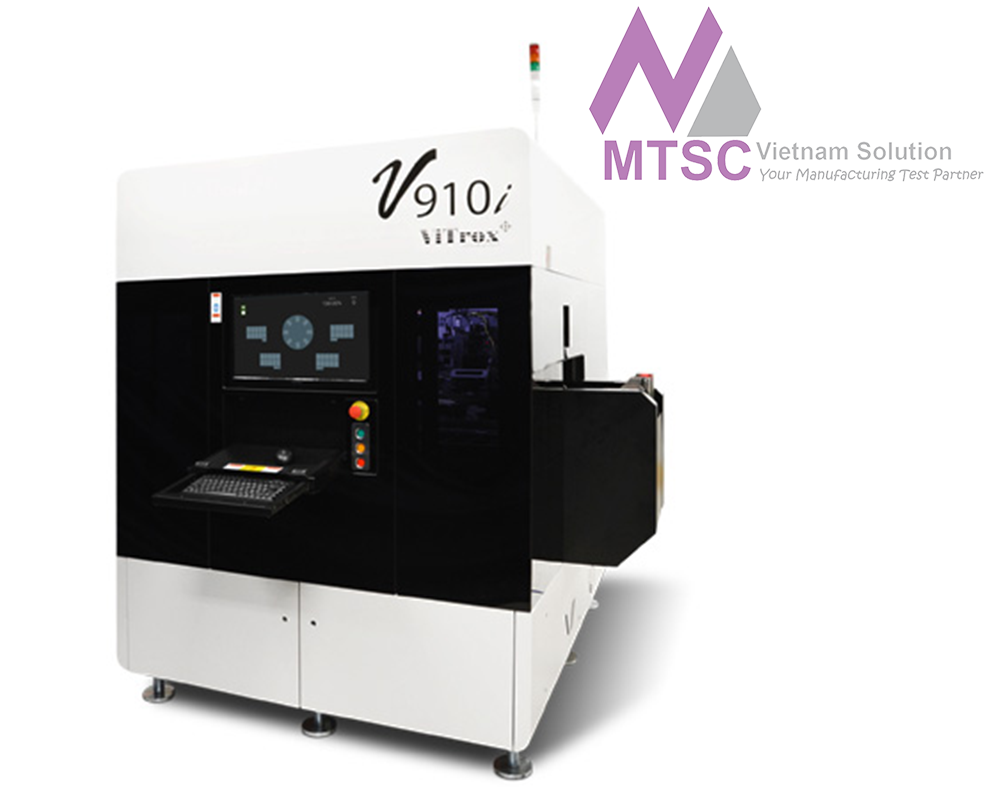

V910i : Advanced Robotic Vision System (ARV)

The V910i system is a next generation solution for the Final Product Inspection, specifically designed for SSD Inspection with 3X higher inspection throughput.


Functionality

Defects Coverage: Label defects (bubble, incorrect label, misalignment, empty, peel off, contamination, orientation, missing, incorrect printing, printing misalignment, printing quality & scratch), housing scratch, housing assembly gaps, screw damaged, screw missing, wrong screw, gold finger lifted and contamination.

Inspected Devices: SSD (Various types of 1.8”, 2.5” & M.2 drives), Modular Device

No. of Inspection Surfaces: 6 sided surface inspection

Throughput: Up to 400 UPH

Hardware Systems

Vision Camera: 4 x 4 mega pixels color cameras; 22µm & 27µm per pixel resolution

Vision Lighting: Coaxial Lights, Ring Lights & Bar Lights

Computer System: Workstation; Intel Xeon Processor; 16GB RAM; 1 x 500GB SATA HDD; 1 X 120GB SSD HDD; 21 inch wide screen monitor

Graphic Card: Nvidia GeForce GTX 960

Host Protocols: 10/100/1000-Base Ethernet; TCP/IP or MS Network

Device Input Form: JEDEC tray (up to 14 trays)

Device Output Form: JEDEC tray (up to 15 trays); 2 Reject Trays

Pick and Place Mechanism: SCARA Robot

Indexing Mechanism: High Speed Direct-drive Turntable

System Dimensions

Footprint: W: 2115 mm x D: 1730 mm x H: 2040 mm

Weight: ~ 1600 kgs

Detail



World leading innovation machine vision inspection providers building

Since its inception in 2000, ViTrox designs and manufactures innovative, leading-edge and cost-effective automated vision inspection equipment and system-on-chip embedded electronics devices for the semiconductor and electronics packaging industries. ViTrox's core products are its Machine Vision System (MVS), Automated Board Inspection (ABI) and Electronics Communication System (ECS).

ViTrox serves customers from semiconductor Outsourced Assembly and Test (OSAT) companies, printed circuit board manufacturers, electronics assemblies companies, Original Equipment Manufacturers (OEM), Original Design Manufacturers (ODM), Electronics Manufacturing Services (EMS) providers and Contract Manufacturers (CM) around the world.

On 24th June 2004, ViTrox was converted into a public limited company and adopted the name of ViTrox Corporation Berhad. Currently, ViTrox is listed under the Main Board of Bursa Malaysia with stock code of 0097.

ViTrox received numerous national and international recognitions and awards for its outstanding performance in product development and corporate performance, as well as human resource development.

At present, ViTrox is well recognized as one of the world-leading automated machine vision inspection solution providers with an extensive customer base in Malaysia, Singapore, Indonesia, Thailand, Vietnam, Philippines, Taiwan, China, Japan, Korea, India, Australia, Europe, Brazil, Mexico, the USA and more
