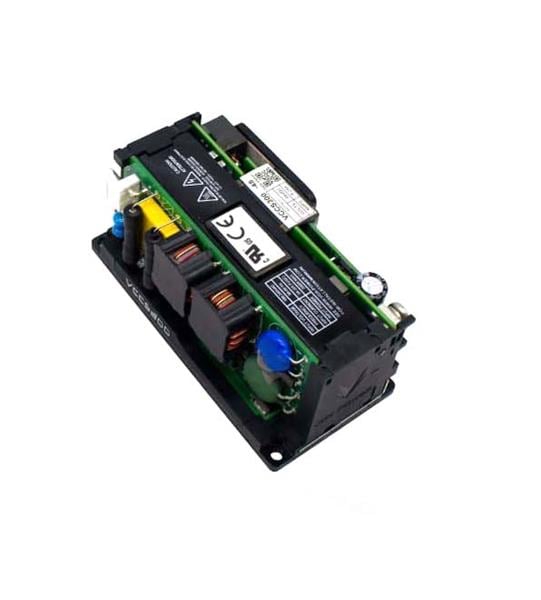

Vox Power VCCS300M-48 Conduction Cooled PSU 300W 48V Medical Conduction Cooled PSU 2 x 4
Manufacturer: Vox Power Model: VCCS300M-48 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 50.8 mm (2 in)
Height: 40.2 mm (1.583 in)
Length: 101.3 mm (3.988 in)
Industry: Medical
IP Rating: IP10
Efficiency: 95%
Input Type: AC - Class I & II
Unit Weight: 330 g
Output Power: 300 W
REACH - SVHC: Details
Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC
Cooling Method: Air-Cooled, Conduction, Convection
Mounting Style: Chassis
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Regulated
Isolation Voltage: 4 kVrms
Number of Outputs: 1 Output
Power - Forced Air: 1 ms (200 LFM)
Open Frame/Enclosed: Open Frame
Output Current-Channel 1: 6.25 A
Output Voltage-Channel 1: 48 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
