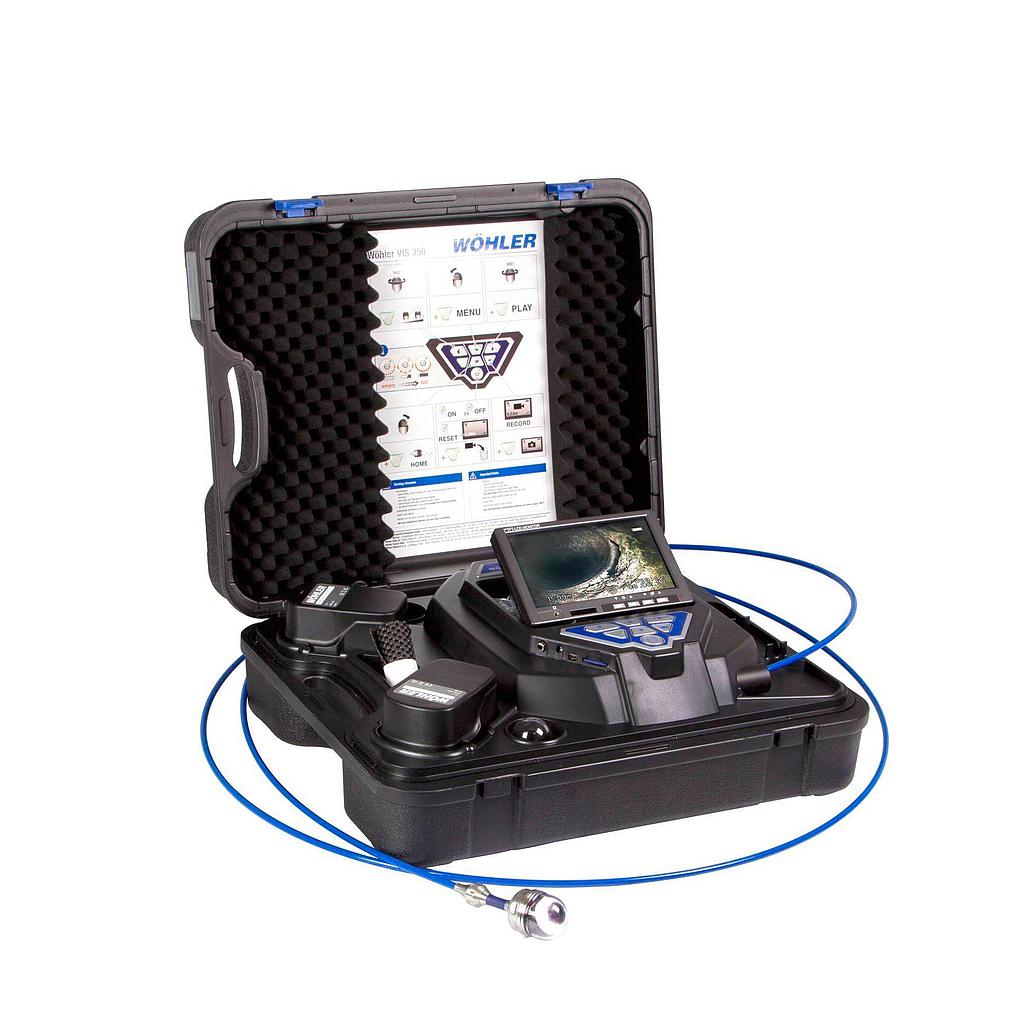

Wöhler VIS 350 PLUS Visual Inspection Camera (30m, detachable head)
Manufacturer: Wöhler Model: VIS 350 PLUS P/N: 8991 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Monitor
Dimensions housing: 176 x 114 x 32 mm
TFT-display: 7" / 16:9 format
Video out: RCA signal
Wöhler pan / tiltable camera head Ø 40, detachable
Type: 1/3" COLOR CMOS
Pixels: 768 x 576 (PAL)/656 x 492 (NTSC)
Light sensitivity: 0.5 Lux
Lens f = 2.3 mm. F = 2.5
Viewing angle 130°
Light source:12 white LEDs
Degree of protection: IP 67
Dimensions: Ø40 x 60 mm
Transmitter frequency: 9.2 kHz
Wöhler miniature camera head Ø 26. detachable
Type: 1/3" COLOR CMOS
Resolution: 420 lines
Pixels: 768 x 576 (PAL)/656 x 492 (NTSC)
Light sensitivity: 0.5 Lux
Lens: f = 2.3 mm. F = 2.5
Viewing angle: 145°
Light source: 12 white LEDs
Degree of protection: IP 68
Dimensions: Ø26 x 38 mm
Transmitter frequency: 9.2 kHz
Push rod: 20m, Ø6.5mm
Plastic case dimensions: 51 x 43 x 17 cm
Distance measurement: Electronic meter counter
Memory: 4Gb SD card (5h recording capacity)
Interface: Mini USB port
Video
Scope of delivery:
Wöhler VIS 350 Service Camera
Digital meter counter
Pan and tilt color camera head Ø40 mm (detachable)
Wöhler TFT monitor 7" with 2 m cable
SD memory card 4 GB for recording of pictures and videos
mini USB cable
30 m push rod 6.5 mm
5 replacement plastic domes
1 anti-slide-mat
2 NiMH batteries and charger
Plastic case
Datasheet
