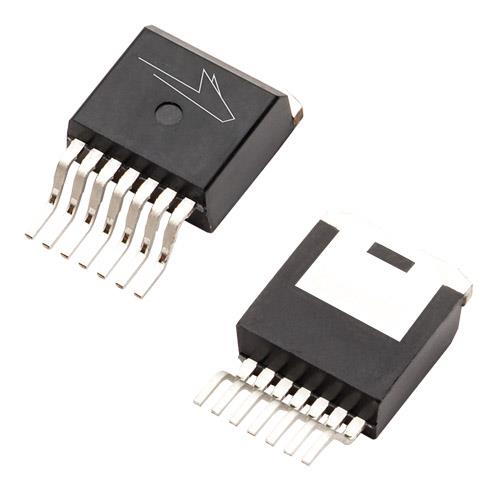

Wolfspeed C3M0120090J Silicon Carbide MOSFET G3 SiC MOSFET 900V, 120 mOhm
Manufacturer: Wolfspeed Model: C3M0120090J - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Fall Time: 5 ns
Rise Time: 9 ns
Technology: SiC
Unit Weight: 1.600 g
Channel Mode: Enhancement
REACH - SVHC: Details
Configuration: Single
Mounting Style: SMD/SMT
Qg - Gate Charge: 17.3 nC
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 83 W
Vgs - Gate-Source Voltage: - 8 V, + 18 V
Typical Turn-On Delay Time: 12.5 ns
Typical Turn-Off Delay Time: 15 ns
Id - Continuous Drain Current: 22 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 6.7 S
Rds On - Drain-Source Resistance: 170 mOhms
Vds - Drain-Source Breakdown Voltage: 900 V
Vgs th - Gate-Source Threshold Voltage: 1.8 V
