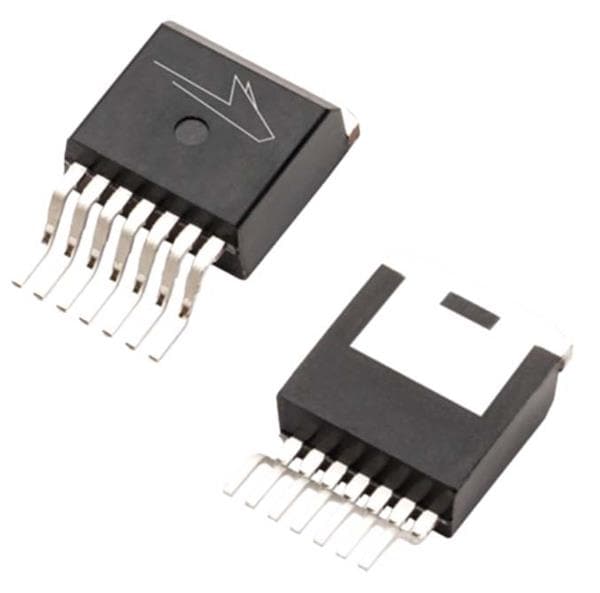

Wolfspeed E4M0015075J2-TR SiC MOSFETS SiC, MOSFET, 15mohm, 750V, TO-263-7 XL T&R, Automotive, Gen4
Manufacturer: Wolfspeed Model: E4M0015075J2-TR - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Technology: SiC
Channel Mode: Enhancement
REACH - SVHC: Details
Mounting Style: SMD/SMT
Qg - Gate Charge: 180 nC
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 554 W
Vgs - Gate-Source Voltage: - 8 V, + 19 V
Id - Continuous Drain Current: 156 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 15 mOhms
Vds - Drain-Source Breakdown Voltage: 750 V
Vgs th - Gate-Source Threshold Voltage: 3.8 V
