Wrindu RDCD-Ⅱ/502 Cable Fault Pre-locator (multiple pulse)

1. Sampling delay: 1-9X

2. Measuring distance: ≤60km; Resolution: 0.5m

3. Low-voltage pulse: Amplitude: 400Vp-p; Width: adaptive

4. Display operation: 12.1-inch industrial control all-in-one touch screen

5. Communication platform: Windows operating platform; USB3.0 communication

6. Built-in power supply: can work continuously for 10 hours, can also be connected to AC power supply.

7. Working conditions: Temperature: -25C~+65C; Relative humidity: 90%RH

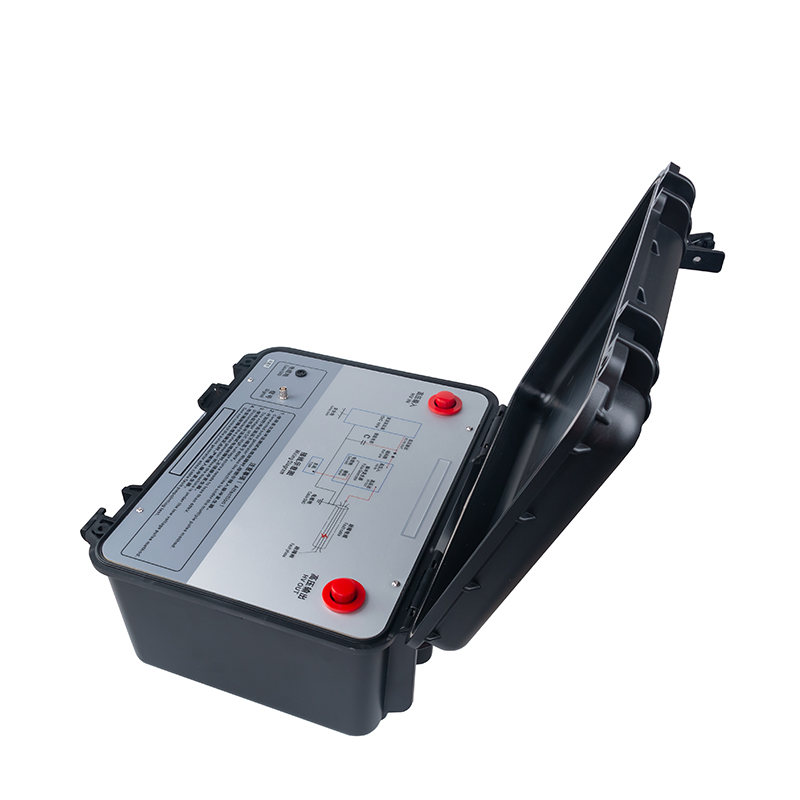

8. Coupler rated voltage: 40kV

Details

Product Features:

The cable fault tester uses an industrial-grade 12.1inch touch-screen computer with a simple operating software interface to achieve human-machine interactive testing. It adopts industrial-grade integrated circuits and components and is equipped with a large-capacity lithium-ion battery for stable and reliable performance and convenient use.

This cable fault tester is a specialized instrument for measuring and analyzing the status and fault distance of power cables. It combines modern electronic technology and computer technology to achieve signal filtering, acquisition, data processing, graphical display, and graphical analysis to complete cable speed measurement, cable length testing, and cable fault distance testing.

This cable fault tester is suitable for low resistance, short circuit, open circuit, and breakage faults of various materials of power cables, high-frequency coaxial cables, streetlamp cables, and buried wires with different cross-sections and media, as well as high-resistance leakage and high-resistance flashover faults.

Test methods: multiple pulse method, induction sampling method, flashover sampling method, low-voltage pulse method
