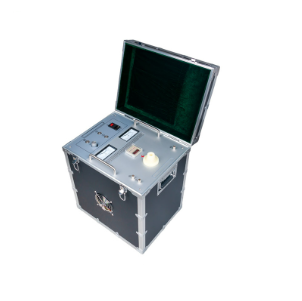

Wrindu RDCD-Ⅱ/5354Z Cable Test High-voltage Signal Generator (all-in-one) (15/35kV)
Manufacturer: Wrindu Model: RDCD-Ⅱ/5354Z - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
1. Voltage: 15/35kV.
2. Capacitance: 8/4 μF.
3. Power: Impact 400 W.
4. Discharge: 900/2450 J.
5. Method: Periodic/Single/DC.
6. Size: 420*320*480 (mm).
7. Weight: 30/35kg.
The high-voltage pulse generator is mainly used to quickly detect cable faults of 35kV and below. It integrates high-voltage power supply, pulse energy storage capacitor, discharge ball gap and sampler.
Simple wiring, easy to operate, safe and reliable. It has functions such as overcurrent, overvoltage and overheating. It is with zero start protection, high voltage side measurement, real-time display of residual voltage. The meter displays the current and voltage pointer in real time which is intuitive and reliable.
