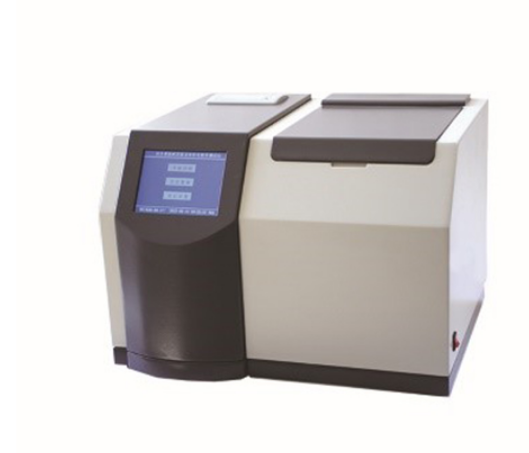

Wrindu RDJS-610D Insulating Oil Dielectric Loss Tester (5pF ~ 200pF)
Manufacturer: Wrindu Model: RDJS-610D - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Power supply voltage: AC 220 V ± 10%
Power frequency: 50 Hz / 60 Hz ± 1%
Measurement range:
- Capacitance is 5pF ~ 200pF
- The relative permittivity is 1.000 ~ 30.000
- The dielectric loss factor is 0.00001 ~ 100
- DC resistivity 2.5 M Ω m ~ 20 T Ω M
Measurement accuracy:
- Relative permittivity ±(1 ~ 10)% reading
- Dielectric loss factor ± (5% reading + 0.0002)
- DC resistivity ± 10% reading
Resolution
- Capacitance 0.01pF
- Relative permittivity 0.001
- Dielectric loss factor 0.00001
Temperature range: 40 ~ 120 ℃
Temperature measurement error: ± 0.5 ℃
AC test voltage: 200-2200 V, Continuously adjustable, Frequency 50 Hz
DC test voltage: 0 ~ 500V, Continuously adjustable
Power consumption: 500W
