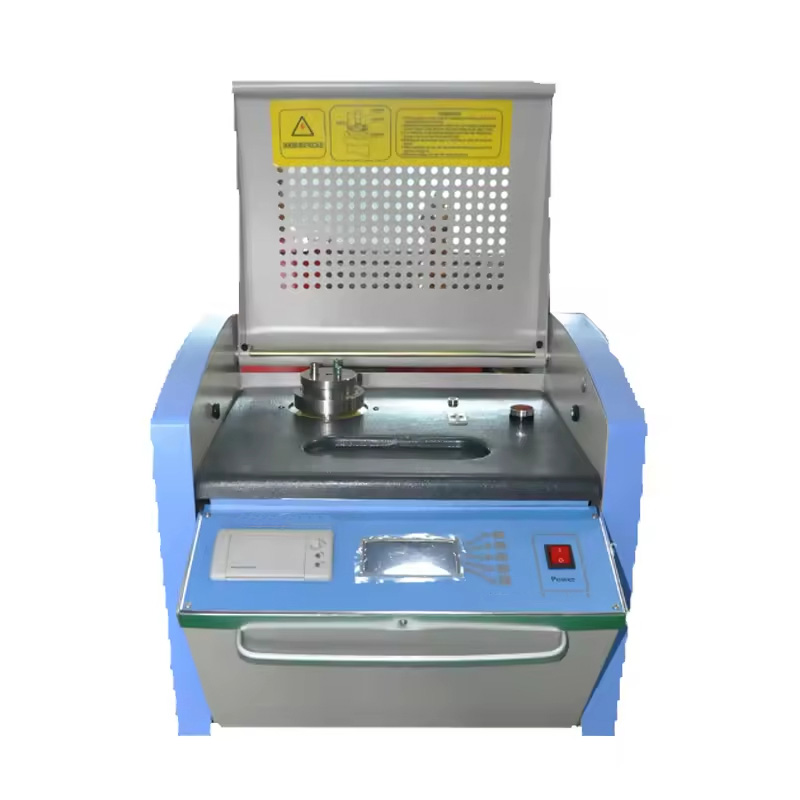

Wrindu RDJS-610J Insulating Oil Dielectric Dissipation Factor Tester (Measurement range: capacitance 5pf ~ 200pf)
Manufacturer: Wrindu Model: RDJS-610J - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
1. Power supply voltage: AC 220 V ± 10%
2. Power frequency: 50 Hz / 60 Hz ± 1%
3. Measurement range: capacitance 5pf ~ 200pf
The relative permittivity is 1.000-30.000
The dielectric loss factor is 0.00001 ～ 100
DC resistivity 2.5 m Ω m ~ 20 t Ω M
4. Measurement accuracy: capacitance ± (1% reading + 0.5pf)
Relative permittivity ± 1% reading
Dielectric loss factor ± (1% reading + 0.0001)
DC resistivity ± 10% reading
5. Resolution: capacitance 0.01pf
Relative permittivity 0.001
Dielectric loss factor 0.00001
6. Temperature range: 0 ~ 125 ℃
7. Temperature measurement error: ± 0.5 ℃
8. AC test voltage: 500-2000 V, continuously adjustable, frequency: 50 Hz
9. DC test voltage: 0 ~ 500V, continuously adjustable
10. Power consumption: 100W
