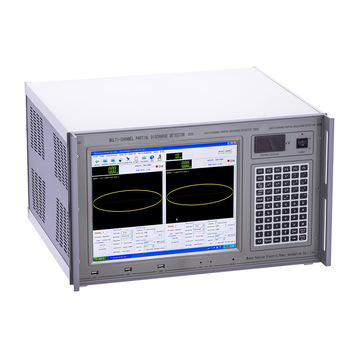

Wuhan JFD-2000A Partial Discharge Test System (3dB width 10kHz－300kHz)

- Measuring channel: A, B 2 channels
- Measuring sensitivity: 0.1pC
- Measuring frequency range: 3dB width 10kHz－300kHz
- Programmable filter gears setting
+ Low end:10,20,40kHz
+ High end:100,200,300 kHz
- Gain dynamic range: 120dB
- Sampling rate: 0.1μs/point for each channel
- Sampling accuracy: 8 bit±1/2LSB
- Synchronous frequency: 30，100，150，200，250Hz or any Hz
- Calibration impulse generator: HTJF-301
- Calibration impulse voltage: 10V,5V,2V,1V,0.5V,0.2V :six gears available
- Calibration capacitor: 50pF,200pF :two gears available
- Calibration impulse voltage rise time: <60ns, pulse width>20μs
- Calibration impulse voltage fall time: >100μs
- Calibration phase angle range: 0-360
- PD peak value: 0-1000pC
- Working power: AC 220V±10％，50Hz, power<100VA, fuse 0.5A
Accessories
- Host
- Accessory Case
- Calibration impulse generator
- Detecting Impedance
- Keyboard/ Mouse
- Shieded Cable
- Test Wire
- Test Clip
- Power Cord
- Manua, Report, Certificate
