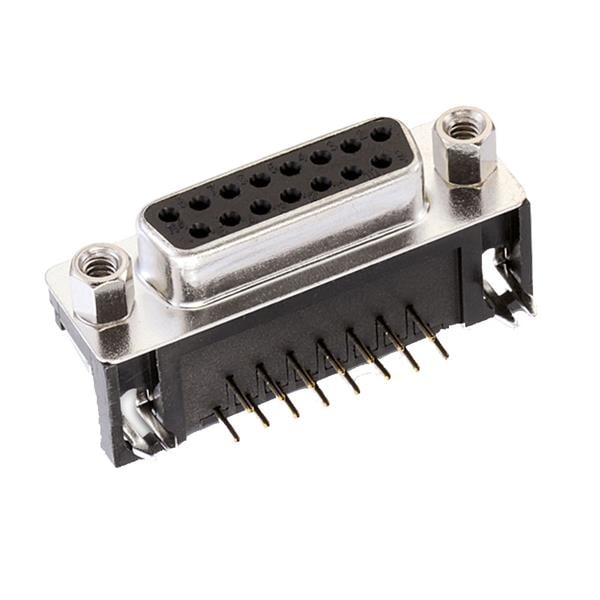

Wurth Elektronik 618015231121 Receptacle WR-DSUB Female PCB 15Pin HexScrw 8.08mm
Manufacturer: Wurth Elektronik Model: 618015231121 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gender: Female
Filtered: Unfiltered
Boardlocks: With Boardlocks
Shell Size: 2 (A)
Unit Weight: 11 g
Contact Type: Stamped / Formed
REACH - SVHC: Details
Shell Plating: Nickel
Contact Gender: Socket (Female)
Current Rating: 3 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 2 Row
Shell Material: Steel
Voltage Rating: 125 V
Contact Plating: Gold
Contact Material: Copper Alloy
Termination Style: Solder
Insert Arrangement: A15
Insulation Material: Polybutylene Terephthalate (PBT)
Number of Positions: 15 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
