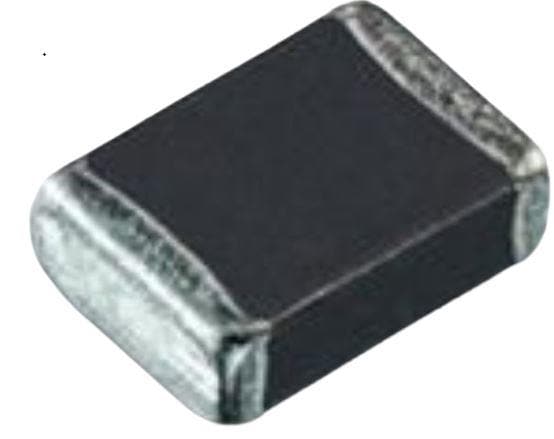

Wurth Elektronik 782763700 High Speed WE-CBA 70Ohms 500 mA 0.15Ohms AEC-Q200
Manufacturer: Wurth Elektronik Model: 782763700 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 1.6 mm
Height: 1.1 mm
Length: 3.2 mm
Impedance: 70 Ohms
Shielding: Shielded
Tolerance: 25 %
Qualification: AEC-Q200
Test Frequency: 100 MHz
Termination Style: SMD/SMT
Maximum DC Current: 500 mA
Number of Channels: 1 Channel
Number of Elements: 1 Element
Maximum DC Resistance: 150 mOhms
Operating Temperature Range: - 55 C to +125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
