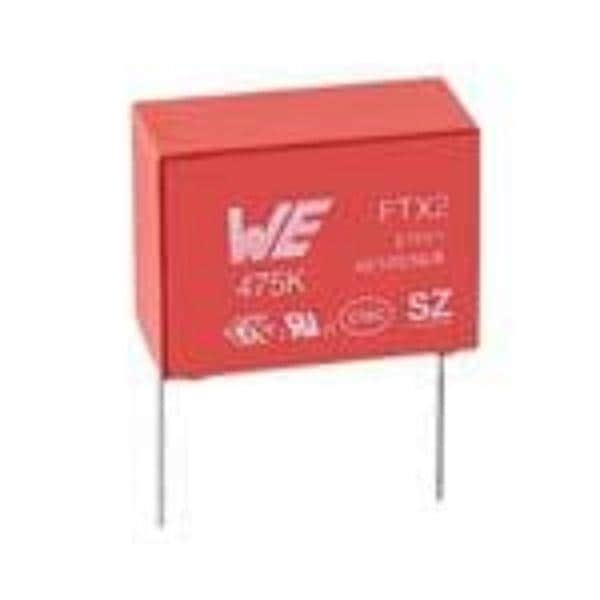

Wurth Elektronik 890324025039CS Foil Capacitor WCAP-FTX2 4mm Lead 0.47uF 10% 275VAC
Manufacturer: Wurth Elektronik Model: 890324025039CS - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 8 mm
Height: 14 mm
Length: 18 mm
Tolerance: 10 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 0.47 uF
Unit Weight: 2.490 g
Lead Spacing: 15 mm
Lead Diameter: 0.8 mm
Pitch Spacing: 15 mm
Safety Rating: X2
Number of Pins: 2 Pin
Capacitance - nF: 470 nF
Capacitance - pF: 470000 pF
Termination Style: Radial
Voltage Rating AC: 275 VAC
Voltage Rating DC: 630 VDC
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
