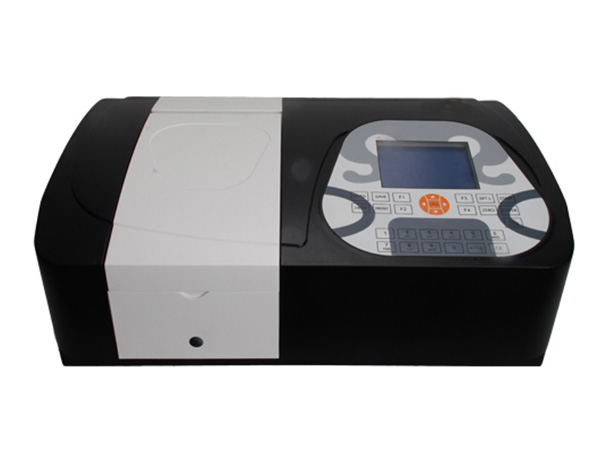

XHinstruments XHD-IU-B UV-VIS Spectrophotometer (190-1100nm)

Manufacturer: XHinstruments
Model: XHD-IU-B
Contact
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0932.160.940

Specifications
Manufacturer Info

Wavelength Range: 190-1100nm

Bandwidth: 2nm

Wavelength Accuracy: ±1nm

Wavelength Reproducibility: ≤0.3nm

Photometric Accuracy: ±0.5%T

Photometric Repeatability: ≤0.2%T

Straylight: ≤0.05%T

Stability: ±0.001A/h(at 500nm)

Baseline Flatness: ±0.0005A

Noise: ±0.001A

Photometric Range: "0-200%T, -0.3~3A, 0-9999C

Wavelength setting mode: Automatic

Scanning speed: —

Output: USB Port

Printer port: Parallel Port

Display: LCD(128*64)

Light Source: Deuterium&Tungsten Halogen Lamp

Detector: Silicon Photodiode

Power: 220V AC ±10%/50Hz or 110V AC / 60Hz

Dimension: 420x300x160mm

Weight: 13Kg

Details

Product Description:

The UV-Vis spectrophotometer is the most widely used analytical instrument in the world. Its application fields involve scientific research, production, teaching, etc. It is used for quantitative analysis, qualitative analysis, purity analysis, structural analysis and reaction kinetics research.

Product Features:

The Main unit and PC software can independently implement fun ctions of Quantitative;Kinetics;Wavelength Scan; Multi Wavelength; DNA/Protein and Data Printing,PC software can complete the function of data processing.

Suspended posture optical system design, strengthen and thicken the bottom plate to eliminate the vibration or transformation’s impact on the optical system.

24-bit high speed and high precision A/D conversion, and improve the sensitivity of the instrument.

The core components are imported from Germany and Japan.

Optical system based on optical system, based on top structure design, top technological requirements and top raw materials.

Standard with PC software
