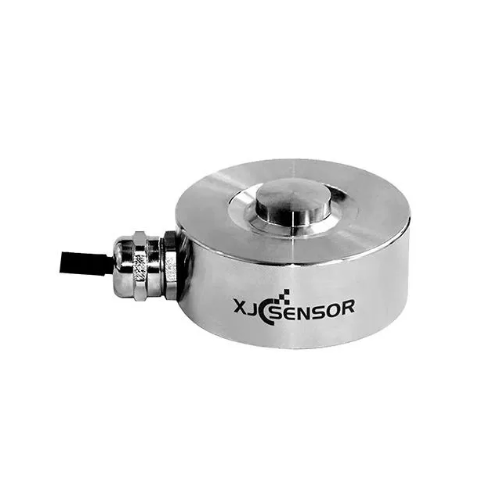

XJCSENSOR X-C03-4M Compression Load Cell (0-15T)
Manufacturer: XJCSENSOR Model: X-C03-4M - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Capacity: 0-15T
Material: Stainless steel
Nonlinearity: 0.2%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.2%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/100VDC
Input impedance: 380±30(750±30Ω)
Output impedance: 350±5(700±10Ω)
Creep(30min): 0.2%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2 %F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times

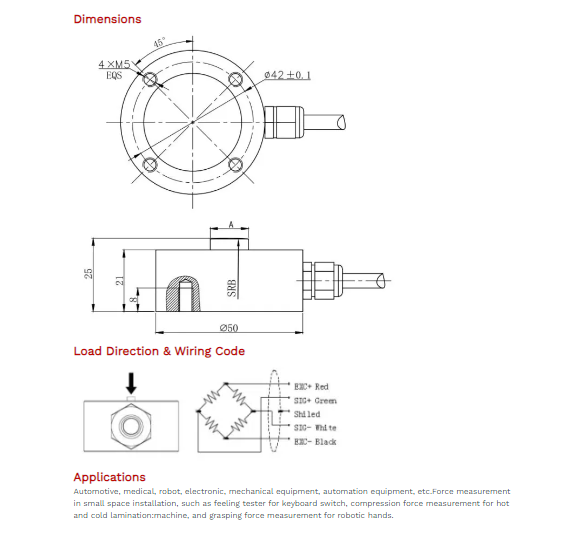

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
