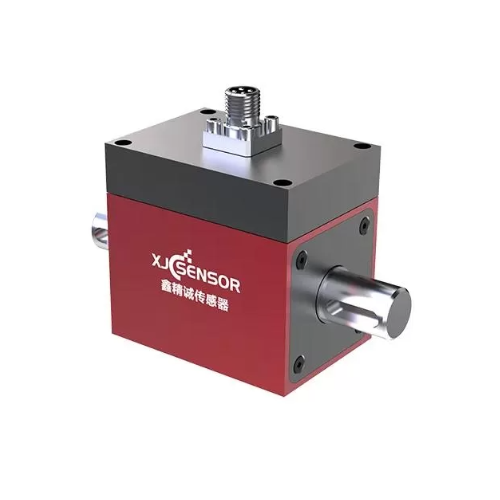

XJCSENSOR X-DT-2002 Dynamic Torque Sensor (5000N.m)
Manufacturer: XJCSENSOR Model: X-DT-2002 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Output sensitivity: 0-10V/RS485
Max rotate speed: 5000r/min
Non-linearity: ≤±0.2%F.S.
Repeatability: ≤±0.1%F.S.
Zero balance: ±2%F.S.
Operating temp range: -20~60°C
Compensated temp range: -10~40°C
Insulation resistance: ≥2000MΩ/50VDC
Recommended excitation voltage: 24VDC
Limit load: 200%F.S.
Cable size: φ5x4m
Protection class: IP64
Temp effect on output: ≤±0.2%F.S./10℃
Temp effect on zero: ≤±0.2%F.S./10℃
Response frequency: 100μs
Angular velocity: Pulse signal
Cable Connection: 24+: Red; 24-: Black; Analog output+/RS485+: Green; Analog output-/RS485-: White; Angular velocity 1:Blue; Angular velocity 2:Yellow; Reset: brown;
