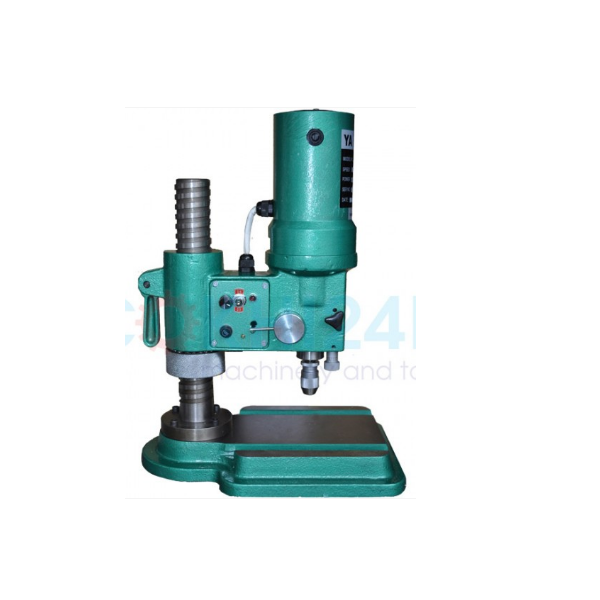

YL Yaliang YL-100 Air Tapping Machine
Manufacturer: YL Yaliang Model: YL-100 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Drilling capacity: 0.2-3mm
Motor type: Winding rotor
Voltage: 220V 1 phase 50Hz
Spindle type: JT0 taper
Spindle stroke (drill head): 30mm
Spindle speed range: 0~12000rpm
Speed change mechanism: Stepless
Table type: Square table with base
Table size: 185x200
Number of grooves on the workbench: 2 grooves
Column height: 370mm
Distance from spindle to column: 100mm
Machine height: Min 425mm/Max 510mm
Base dimensions: 225x330x40mm
Weight: 24kg
