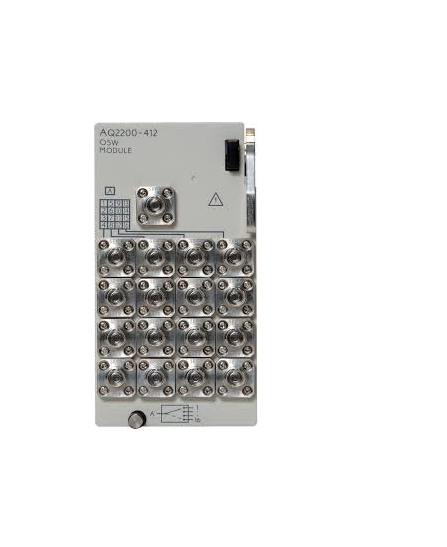

Yokogawa AQ2200-412 Optical Switch Module (1 x 16)

  • Manufacturer: YOKOGAWA
    Model: AQ2200-412
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Yokogawa

Model: AQ2200-412

Warranty: 12 months


Port configuration: 1 × 16

Number of switch: 1

Wavelength: 850 nm/1310 nm, 1310 nm/1550 nm

Insertion loss:  1.0 dB

Repeatability:  ±0.01 dB or less

Crosstalk: 60 dB or more, 50 dB or more

Optical return loss: 45 dB or more, 20 dB or more

Maximum input power: +23 dBm

Polarization dependence: 0.08 dBp-p or less

Applicable optical fiber: SMF (ITU-T G.652); MMF (GI 50/125) (ITU-T G651.1)

Optical connector : Select any of FC/PC or SC/PC

Dimensions: Approx. 62.5(W) × 117(H) × 321.5(D) mm, 2 slots wide (excluding protrusions)

Weight: Approx. 1.5 kg
