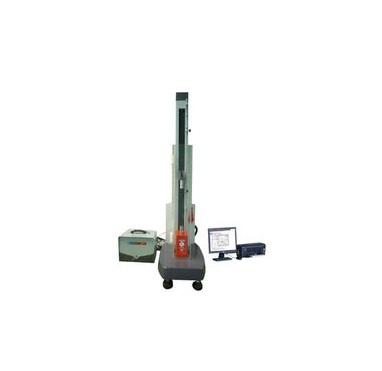

YuYang YY1309 Servo Control Tensile Strength Stroke (exclude the grips) 500 mm Tensile Testing Machine (100N)
Manufacturer: YuYang Model: YY1309 Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Capacity (optional): 100N
control system: Servo motor with computer system
Load Resolution: 1/200,000 (or 1/300,000 )
Load Accuracy: ±0.5%
Load Range: Rangeless (full scales at the same amplification)
Stroke (exclude the grips): 500 mm
Communication Interface: USB
Test Speed: 0.0001~500 mm/min
Speed Accuracy: ±0.5%
Stroke Resolution: 0.00004 mm
Computure Acquisition Frequencye: 200 times/sec
Dimension (W×D×H): Main Unit: 35 × 40 × 105 cm
Weight (approx.): Main Unit: 50 kg( exclude the grips)
Power: 1∮, 220V,50Hz or specified by user
