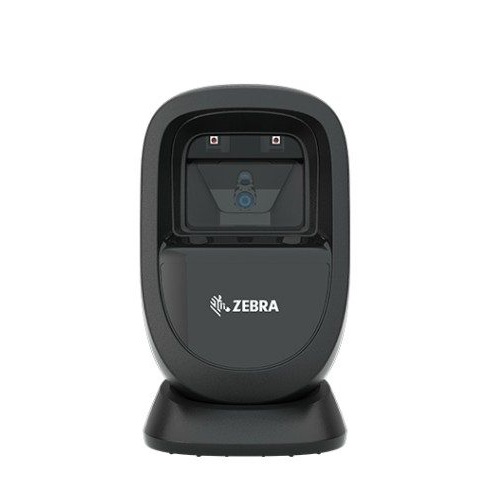

Zebra DS9300 Presentation Scanner (1D, 2D scanning)
Manufacturer: Zebra Model: DS9300 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Dimensions: 5.7in. Hx3.4in. Wx3.3in. D
14.5cm. Hx8.6cm. Wx8.3cm. D
Weight: 11.2oz./318g
Input voltage range: 4.5 to 5.5VDC host powered;
4.5 to 5.5VDC external power supply
Operating current at nominal voltage (5.0V)
- Presentation mode: 335mA
- Trigger mode: 350mA
Standby current (Idle) at nominal voltage (5.0V)
- Presentation mode: 135mA
- Trigger mode: 75mA
Color: Alpine White, Midnight Black
Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard support: Supports over 90 international keyboards
Imager Field of View: 52° H x 33° V nominal
Image sensor: 1280 x 800 pixels
Minimum print contrast: 15%
Skew tolerance: +/-60°
Pitch tolerance: +/-60°
Roll tolerance: 360°
Environmental sealing: IP52
