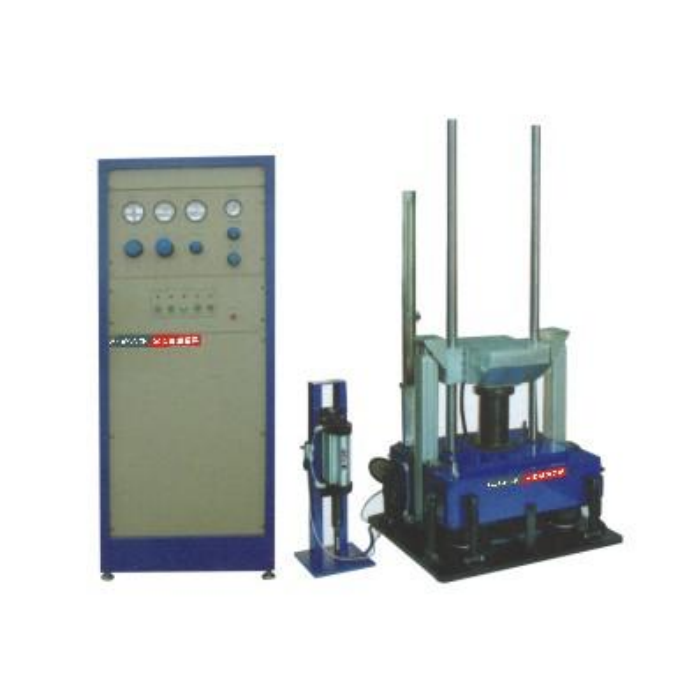

Zhongzhi CZ-11-25 Pressure-driven Vertical Impact, Bump Test Bench
Manufacturer: Zhongzhi Model: CZ-11-25 Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Pneumatic Vertical Shock/Bump Test System
- Load (Kg): 25
- Table Size (mm): 300×300
- Waveform: Half-Sine, Post-peak Sawtooth
- Half-Sine Max. Acc.(g): 5~1500
- Half-Sine Pulse Duration (ms): 0.6~60
- Post-peak Sawtooth Max. Acc.(g): 15~150
- Post-peak Sawtooth Pulse Duration (ms): 3~11
- Bump Waveform：Half-Sine
- Bump Peak Acceleration (g): 5~120
- Bump Pulse Duration(ms)：2~30
- Max. Bump Rate(times/min): 120
- Overall Dimension: 1510×1300×2400mm
- Weight: 3000Kg
- Power Supply: Single-phase AC220V±10％
50Hz
- 2-channel Shock control & measurement
instrument
Accessories
- One set of half-sine waveform generator;
One set of post-peak sawtooth generator;
One set of acceleration sensor
With computer
With air compressor
