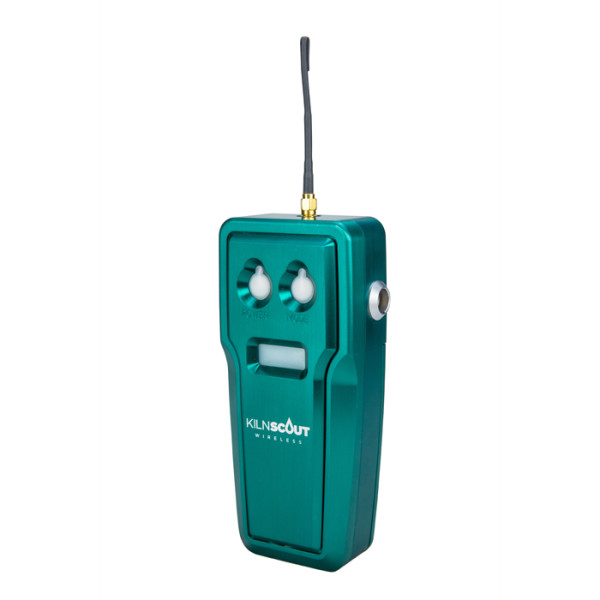

Hệ thống đo độ ẩm lò không dây Finna KilnScout-Softwood

Thông số kỹ thuật

Kích thước: 7,09 in (L) x 3,15 in (W) x 1,67 in (D)

Trọng lượng: 19,2 oz

Nhiệt độ hoạt động: -40 ° F đến + 257 ° F

Tần số vô tuyến: 915 MHz

Thiết bị dùng trong lĩnh vực SCSFP

Đo trực tiếp

Phương pháp đo : tần số vô tuyến

Chi tiết

Product Description

The innovative KilnScout-Softwood system provides the industry’s leading wireless kiln moisture meter for batch and continuous kilns. Using capacitive measurement technology, KilnScout-Softwood allows your operation to control the drying process from direct moisture content input. This eliminates the costly feedback loop from the planer mill and unreliable time-based drying schedules. The result is improved grade recovery, increased throughput and a significant impact on your bottom line.

Features:

  • Real-time moisture and temperature readings
  • Scalable from 1-100 sensors, per hub, that can be placed in one kiln or split between multiple kilns if they are in wireless range
  • 17 cubic feet of measurement per sensing point
  • Customized email and text alerts on moisture temperature, shutdown, etc.
  • Advanced monitoring and reporting software, such as viewing remotely

Benefits

  • Directly control continuous and batch drying process via integration
  • Optimize throughput and grade recovery
  • Flexibility to measure anywhere in the kiln – 90-foot wireless transmission range
  • Actively monitor drying and temperature profiles
  • Maintenance requires no kiln down time
  • Eliminate hot checks and monitor fire hazard
  • Benchmark drying performance by season and species

Key Specifications

  • Dimensions: 7.09 in (L) x 3.15 in (W) x 1.67 in (D)
  • Weight: 19.2 oz
  • Operating Temperature: -40°F to +257°F
  • Radio Frequency: 915 MHz

Additional Information

Process

SCSFP

Pin Feature

Pin

Contact Feature

Contact

Measurement Method

Radio Frequency
