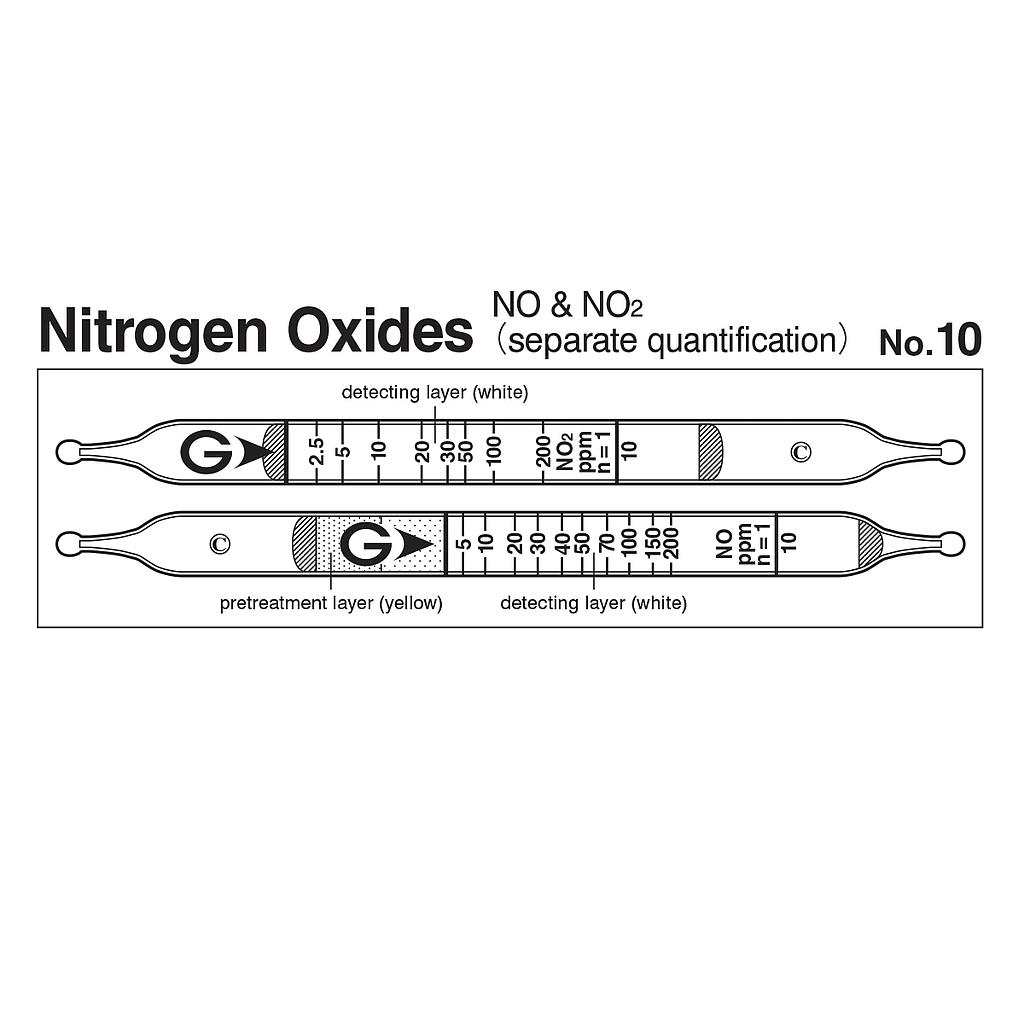

Ống phát hiện nhanh khí Nitrogen oxides NO&NO2 Gastec 10 (2.5-200 ppm)
Hãng sản xuất: Gastec Model: 10 - Yêu cầu báo giá
- Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
Vạch chỉ thị: 2.5 ~ 200 ppm (NO2), 5 ~ 200 ppm (NO)
Thang đo:
+ 2.5 ~ 5 ppm (NO), bơm 2 lần
+ 5 ~ 200 ppm (NO), bơm 1 lần
+ 5 ~ 200 ppm (NO2), bơm 1 lần
Thời gian lấy mẫu: 45 giây mỗi lần bơm
Chuyển đổi màu: Trắng sang vàng cam
Phương trình phản ứng:
+ Ống NO2: NO2 + o-Tolidine → Yellowish orange product
+ Ống NO: NO + Cr6+ + H2SO4 →NO2, NO2 + o-Tolidine → Yellowish orange product
Hệ số biến đổi:
+ Ống NO2: 10% (for 2.5 to 20 ppm), 5% (for 20 to 200 ppm)
+ Ống NO:10% (for 5 to 20 ppm), 5% (for 20 to 200 ppm)
Số ống trong hộp: 5
Dùng thích hợp với bơm: GV-100S/110S
Name of Gas |
|
|||
Measuring Range |
|
|||
Number of Pump Strokes |
|
|||
Correction Factor |
|
|||
Detecting Limit |
|
|||
Sampling Time | 45 seconds per pump stroke | |||
Colour Change | White → Yellowish orange | |||
Reaction Principle | NO2 tube: NO2 + o-Tolidine → Yellowish orange product NO tube: NO + Cr6+ + H2SO4 →NO2 NO2 + o-Tolidine → Yellowish orange product |
|||
Coefficient of Variation | NO2 tube: 10% (for 2.5 to 20 ppm), 5% (for 20 to 200 ppm) NO tube:10% (for 5 to 20 ppm), 5% (for 20 to 200 ppm) |
|||
Shelf Life | 3 Years | |||
Corrections for temperature & humidity | NO2 tube:Unnecessary NO tube:Temperature correction is necessary |
|||
Store the tubes at cool and dark place. |
For the NO2 tube
Substance | Concentration | Interference | Change colour by itself to |
Nitric Oxide | No | Red(entrance of the detecting layer) | |
Hydrogen chloride | Unclear demarcation | No | |
Ozone, Halogens, Chlorine dioxide |
1/5 | +20% | Yellowish orange |
Sulphur dioxide | 50 ppm | Unclear demarcation | No |
For the NO tube
Substance | Concentration | Interference | Change colour by itself to |
Hydrogen chloride | No | No | |
Ozone, Halogens, Chlorine dioxide | No | No | |
Sulphur dioxide | No | No | |
Nitrogen dioxide | No | No |
Calibration gas generation | Permeation tube method |
TLV-TWA | TLV-STEL | Explosive range |
NO2: 0.2 ppm(2014) NO: 25 ppm(2014) |
- | - |
