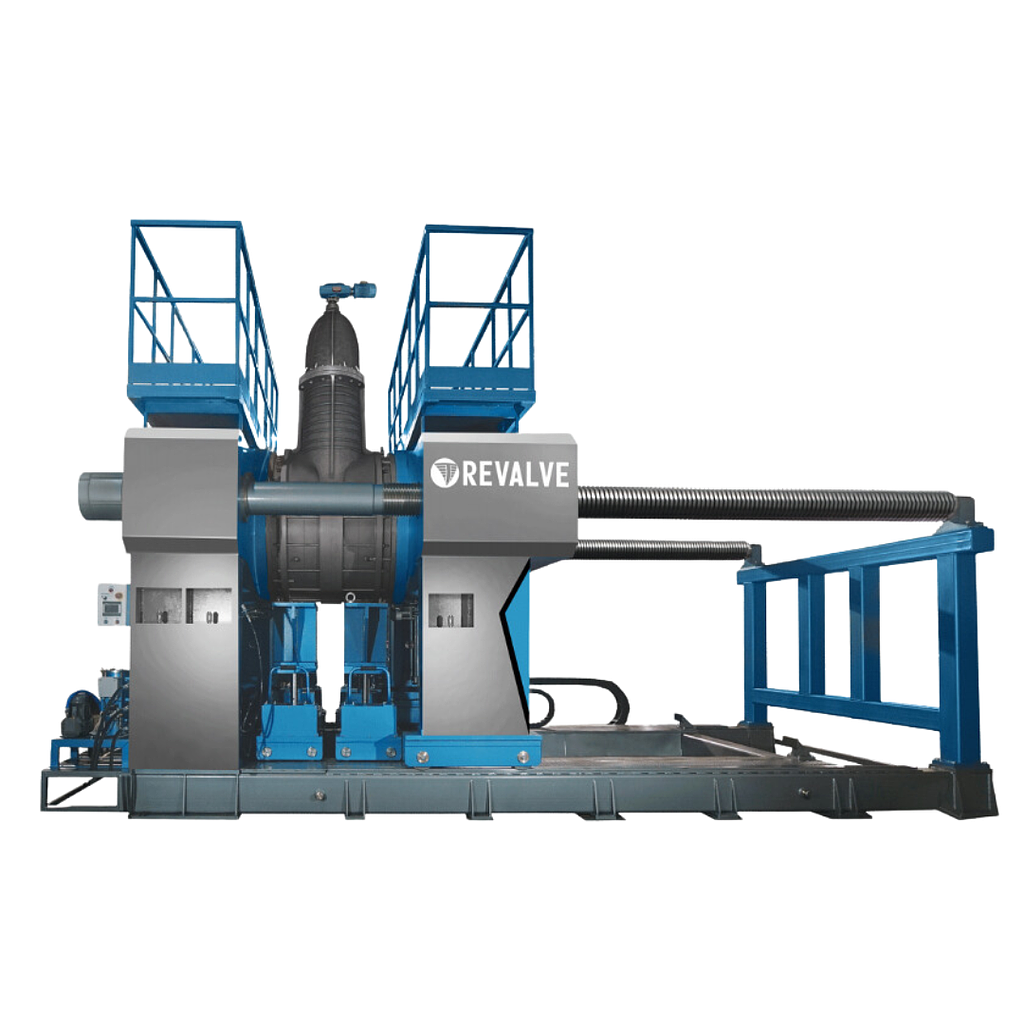

Revalve S-6-1200/2000 Test Benches For Shut Off & Control Valves

Specifications:

Maximum clamping force: 2000 t

Distance between test tables:(″) 600/3400 (23/134) (min/max)mm

Distance between screw rods(″): 2500 (98)mm

Electric power supply: 400/50 V/Hz

Power consumption: 20kW

Overall dimensions (LхWхH)(″):7390х3536х3010 (291x139x119)mm

Weight: 40000kg

* Maximum diameter for wedge gate valves (except ball valves).
