Kiểu Driver: 1/2 F/Sq Dr.
Dải lực: 25 - 250 lbf.ft/ 33.9 - 339 N.m/ 3.5 - 34.5 kgf.m
Trọng lượng: 8 lbs.
FEATURES:

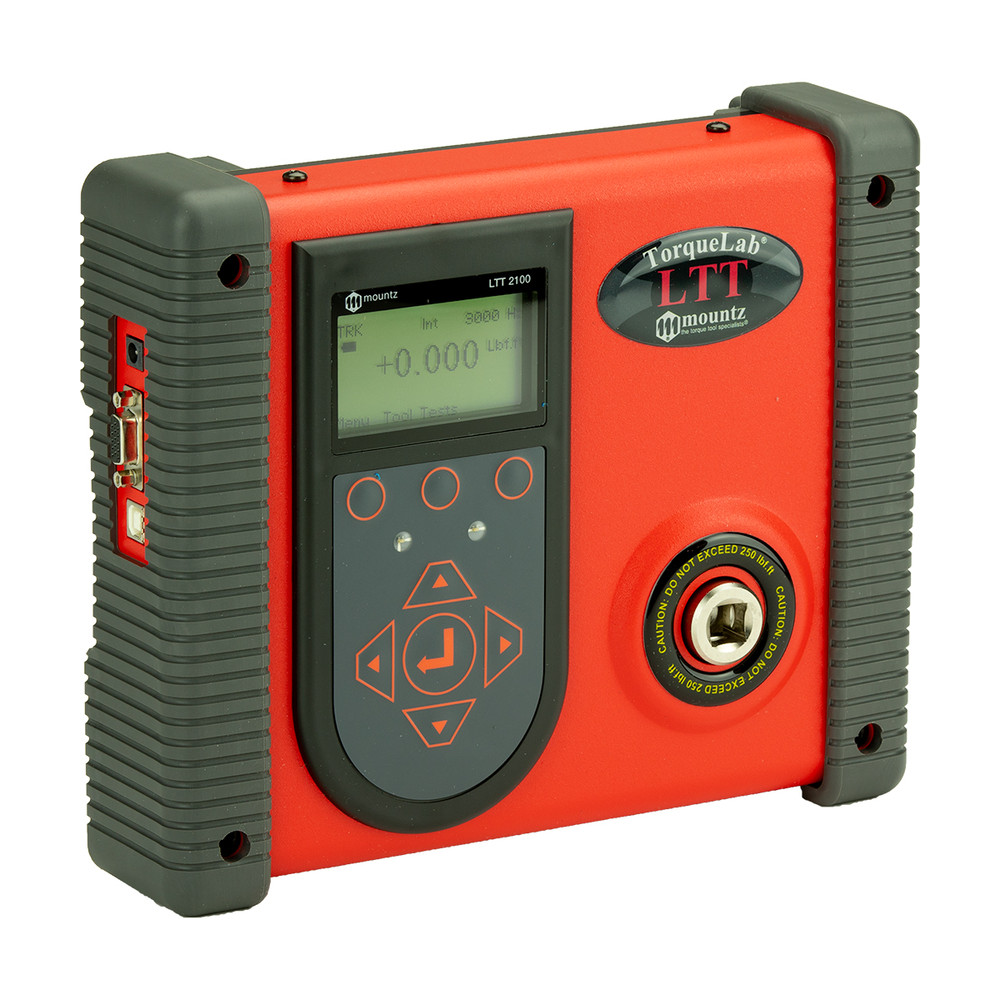

The torque analyzer is designed for calibrating tools, joint testing, auditing and measuring torque. Torque tools go out of calibration with use. To maintain consistent accuracy, torque tools must be checked periodically for wear or defective parts. A power or hand torque tool is a measuring tool that must be properly calibrated and maintained. The LTT-Series is an advanced torque testing and documentation solution. Using a quality torque tester makes a safer world through accuracy and precision. Controlling torque is essential for companies to ensure their product’s quality, safety and reliability isn’t compromised.
Accuracy ± 0.5% of reading from 20% to 100% of full scale
Accuracy ± 1% of reading from 10% to 20% of full scale
Recommended for all hand screwdrivers, wrenches or power tools
Provides “EZ-Plug & Play” with Mountz torque sensors. Features “ARCII” technology, an instant auto-recognition system of the sensor connected to the LTT
Features a built-in transducer and can connect to an external torque sensor
Selection of six operation modes: (Track, Peak, First Peak, Audit, Spindle Audit and Torque + Angle)
Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
Features built-in tool tests operation
Stores a total of 5000 data points
Real time clock for time stamping of readings. USB interface to download readings to PC
Real time graph of torque vs. time using associated PC Windows software
Features Go / No Go LEDs that illuminate when high or low setting is achieved
Supplied with a Free ISO 17025 Certification of Calibration
Specifications
Easy-to-use menu structure, a six-digit display and connect to an external torque sensor
High capacity Li-Ion batteries for long life (30 hrs with standard torque sensors and 16 hrs with brushless rotary sensors)
Can connect to most mv/v torque sensors and can store calibration data for up to 50 non smart torque & force sensors
The 5VDC capability allows unit to be used with a Brushless Rotary torque sensor for testing pulse tools and high RPM tools
Torque and Angle data is displayed simultaneously when used with Torque and Angle sesnors, up to 8000 RPM for angle measurement
Display Accuracy is better than +/- 0.0625 of reading
Five low-pass filter selections (3000, 2000, 1500, 500 and 200 Hz)
“Flash" memory allows upgrades to be done by the user in the field & internet through the USB port
