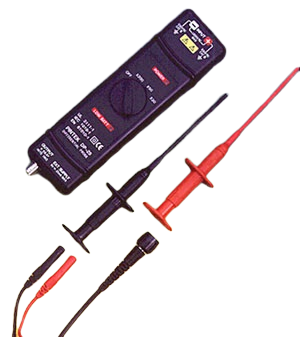

Que đo vi sai Pintek DP-25 ( 1.3KVp-p / 25MHz Economic Model )
Hãng sản xuất: PINTEK Model: DP-25 Xuất xứ: Taiwan (Đài Loan) - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0932.160.940
![]() |
3 RANGE ATTENUATOR. |
![]() |
1000V INPUT CAT III |
![]() |
LOW BATT. AUTO OFF. |
![]() |
SEPARATING DESIGN.CONVENIENT, DURABLE. |
![]() |
MEET CE, IEC 1010, EN 61010, UL 3111. |
More Spec DM-1 DM-2 Manual Differential Probe Selection Guide
Band width (-3dB, 50Ω load): DC-25MHz . ( x 20: DC~15MHz)
Accuracy : ± 2% at 20-30℃ 70% RH after 20 minutes warm up.
Attenuation : x 20, x 50, x 200 ( Into 1MΩ scope ) ; x 40, x 10
, x 400 ( Into 50Ω load )
Maximum operation Voltage ( DC + peak AC ) :
≦ ± 140V at x 20
≦ ± 350V at x 50
≦ ± 1300V at x 200
Maximum input Differential Voltage : 1300V ( DC + peak AC ) or 1000V RMS
Maximum input Voltage to Ground : 1000V ( DC + peak AC ) or 600V RMS
Common Mode Rejection Ratio ( CMRR ):
60Hz : >10,000 : 1
100Hz: >1,000 : 1
1MHz: > 300 : 1
Noise :≦ 2 mV rms ( Into 50Ω load )
Input Impedance :
2MΩ, 2.3 PF between inputs and ground.
4MΩ, 1.2 PF between inputs.
Power : external 6V-9V DC.
WARNING
- Do not use DP-25 above 1000v ( DC + peak AC ) between ground and the input or 1,300V ( DC + peak AC ) between the input lead.
- Do not operate DP-25 in wet or damp condition.
- Do not operate DP-25 in an explosive atmosphere.
- Do not immerse DP-25 in liquids.
- Do not operated DP-25 without covers.
- Please change the battery when the "LOW BATT " LED is lighted. At this time DP-25 can operate but not guaranteed the accuracy.
- DP-25 can not operate if both POWER and LOW BATT LED are not light.
FEATURES
- The DP-25 FET input differential probe provieds a safe means of measuring circuits with floating potentials up to 1000 V ( DC+ peak AC ) from ground and 1300V ( DC + peak AC ) differential.
- The DP-25 converts the high voltage differencial input signal to a low voltage ground refereced signal for display on any Oscilloscope.
- The output BNC of DP-25 is calibrted to drive a high impedance ( 1MΩ ) load.
INSTRUCTION FOR USE
- Connect the output BNC of DP-25 to the input BNC of the Oscilloscope by the accessory BNC cable.
- Adjust the vertical offset of the Oscilloscope if necessary.
- Set the select proper range of the DP-25 and the V / DIV of the Oscilloscope according to the scale conversion chart.
- Scale conversion chart : The effective V / DIV is the attenuation factor of x 20, x 50, x 200 multiplied by the scale factor of the Oscilloscope. It will be twice when the 50 Ω load was used. For example, with the range set at x 200,
and the scope set to 0.5 V / DIV, the effective V / DIV equals 200 x 0.5 or 100 V, with the 50 Ω load was used, it becomes 200V, the power consumption will increase too.
NOTE :
If the voltage of the input signal exceeeds the linear range of the setting range.The signal output of the DP-25 would not accurately, the wave form display will be cut off.
