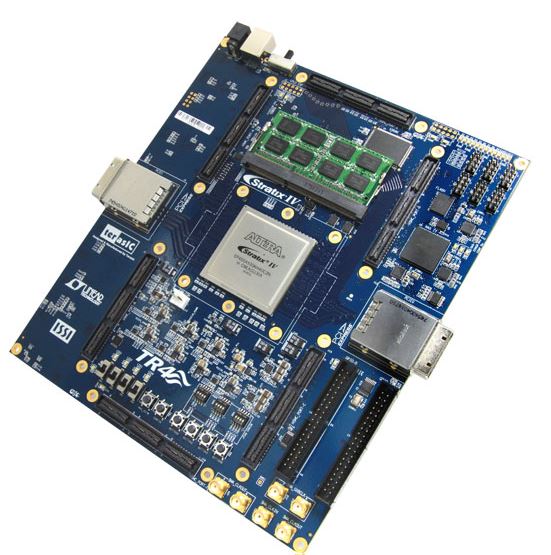

Terasic TR4 FPGA Development Kit

Stratix IV GX EP4SGX230
    228,000 logic elements (LEs)
    17,133 total memory Kbits
    1,288 18x18-bit multipliers blocks
    2 PCI Express hard IP blocks
    744 user I/Os
    8 phase locked loops (PLLs)
Stratix IV GX EP4SGX530
    531,200 logic elements (LEs)
    27,376 total memory Kbits
    1,024 18x18-bit multipliers blocks
    4 PCI Express hard IP Blocks
    744 user I/Os
    8 phase locked loops (PLLs)
FPGA Configuration
    MAXII CPLD EPM2210 System Controller and Fast Passive Parallel (FPP) configuration
    On-board USB Blaster for use with the Quartus II Programmer
    Programmable PLL timing chip configured via MAX II CPLD
    Supports JTAG mode
Memory Devices
    64MB Flash with a 16-bit data bus
    2MB SSRAM (512K x 32)
    Up to 8GB capacity
    Maximum memory clock rate at 533MHz
    Theoretical bandwidth up to 68Gbps
Buttons, Switches and LEDs
    4 user-controllable LEDs
    4 buttons for user-defined inputs
    4 slide switches for user-defined inputs
On-Board Clocks
    50MHz oscillator
SMA Connectors
    SMA connector pair for differential clock inputs
    SMA connector pair for differential clock outputs
    SMA connector for clock output
    SMA connector for external clock input
Two PCI Express x4 Connectors
    Support connection speed of Gen1 at 2.5Gbps/lane to Gen2 at 5.0Gbps/lane
    High-speed transceiver channels up to 6.5 Gbps
    Support downstream mode
Six 172-pins High Speed Mezzanine Card (HSMC)
    6 HSMC connectors
    Configurable I/O standards - 1.5V, 1.8V, 2.5V, 3.0V
    Total of 16 high-speed transceivers up to 6.5 Gbps
    Among HSMC Port A to D, there are 55 true LVDS TX channels to 1.6Gbps and 17 emulated LVDS TX channels up to 1.1Gbps
Two 40-pin Expansion Headers
    72 FPGA I/O pins; 4 power and ground lines
    Configurable I/O standards - 1.5V, 1.8V, 2.5V, 3.0V
    Shares pins with HSMC Port
    Standalone DC 19V input
