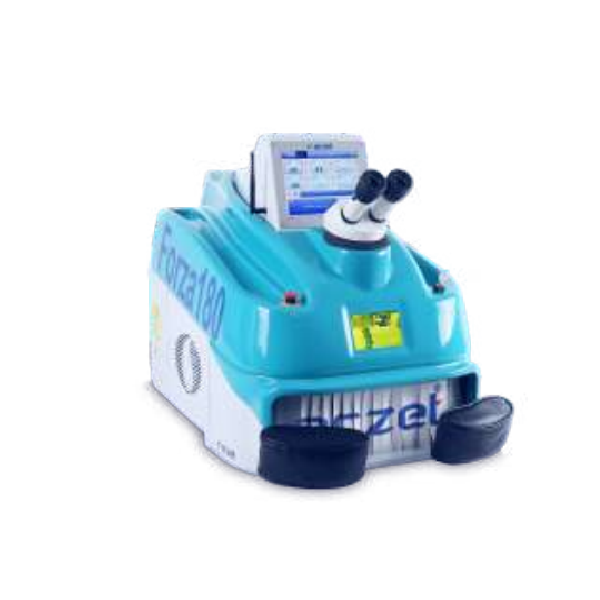

Aczet Forza 180 激光点焊机 (1064nm, 90W)

Laser Source: YAG

Wavelength: 1064nm

Laser Power: 90 W

Pulse Duration: 0.1-20ms

Pulse Frequency: 0.5-30Hz

Max Peak Power: 9kW

Max Pulse Energy: 180J

Microscope: 10x Leica Stereo Microscope

Spot Diameter: 0.2/2mm Motorised (0.1mm optional)

Modes (Theme): Light

Air Nozzle: Yes

Cooling System: Double cooling

Internal Chamber Control: Joystick

Wave Programs: Pulse Shaping 6 Preset

Programmable Memory: 100

Display: 8" Colour TFT Touch Screen

Power Supply: 230V AC, 50/60 Hz (110V available on request)

Dimensions (LxWxH): 860 x 500 x 580 mm

Weight: 50kg
