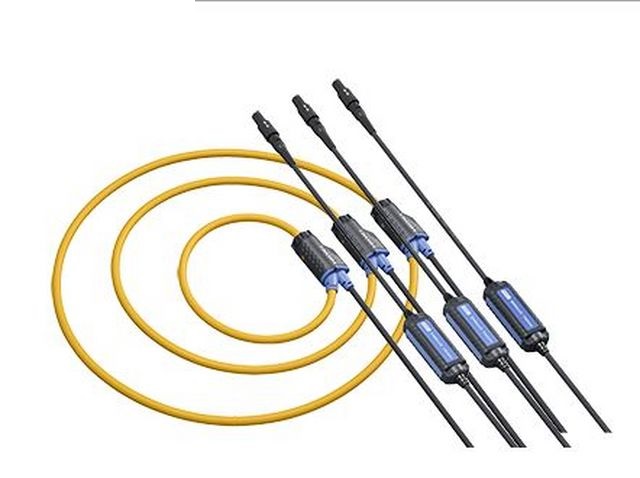

Hioki CT7045 AC柔性电流钳

  • 制造商: HIOKI
    Model: CT7045
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Rated measurement current: 6000 A AC
Internal Measurement range: 600A AC/ 6000A AC (Range is controlled by main device)
Max. allowable input (45 Hz to 66 Hz): 10000 A continuous
Bandwidth: 10 Hz to 50 kHz (±3dB)
Amplitude and phase accuracy (45 Hz to 66 Hz)       ±1.5 % rdg. ±0.25 % f.s. (f.s. is internal range)±1 deg
Output rate : 1 mV/A (600 A), 0.1 mV/A (6000 A)
Loop diameter : φ 180 mm (7.09 in) or less
Output connectors: HIOKI PL 14
Dimensions: Flexible loop cable diameter: φ7.4 mm (0.29 in),
Cable length: Between flexible loop and battery box: 2.3 m (7.55 ft), Output cable: 20 cm (0.66 ft),
Battery box25 mm (0.98 in)W × 72 mm (2.83 in)H × 20 mm (0.79 in)D
Mass: 174 g (6.1 oz)
Accessories: Instruction manual ×1
