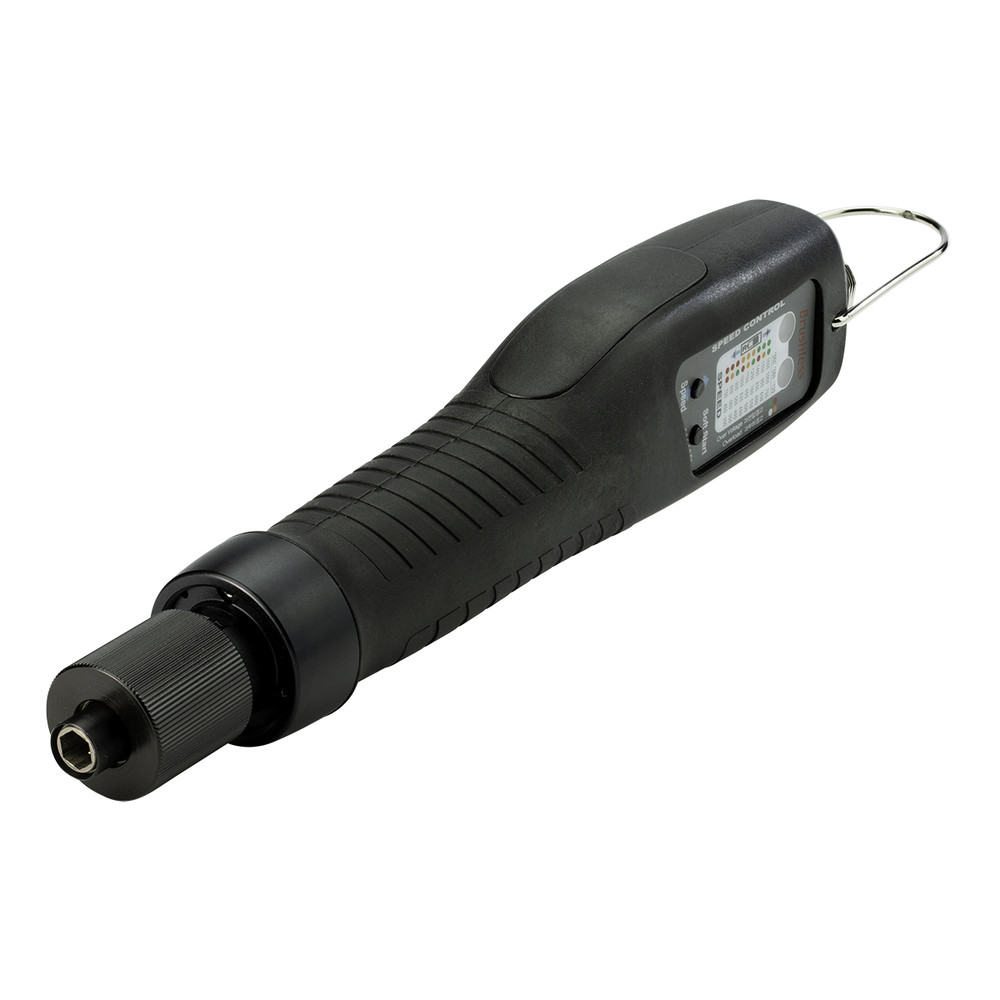

Driver type : Push-to-Start
Drive size: 1/4 F/Hex
Torque range: 0.9 - 6.9 lbf.in / 9.8 - 78.4 cN.m
Adjustable RPM : 450-1000 v/p
Size: Ø 1.25 inch x 9 inch
Weight: 14.5 oz / apprx 43.5g
Remarks: the transformer monitor or other accessories can be optional.
Various models than range from 0.17 - 10.4 lbf.in
High performance brushless motor design provides durability and reduces the
standard maintenance costs for electric screwdrivers.
Designed for high production environments. Minimal heat build-up even when
tool is operated continuously.
Over Heat Protection (OHP) and Over Current Protection (OCP) protect
driver from damage or malfunction. Features a LED display that signals the
tool status for the operator to view.
Can be connected with the Scout Screw Counter.
External torque adjustment scale.
Requires a transformer (power supply).
All models are ESD designed and prevent occurrence of electrostatic
discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
For the BF-Series Miniature Soft Stop, Standard and Soft Stop
models, a Program Lock Key is required. The RPM & Soft Start
Settings can not be adjusted without it.
The Program Lock Key protects from incidental or operator
tampering of the programmable settings on the side of select BF &
NF-Series models*. To adjust the settings the Program Lock Key
must be plugged into the STC40 & FT-30D Mini Transformer.
The program lock key can not be used with Plus models of
BF, NF-Series and Angle & Auto Reverse models.
