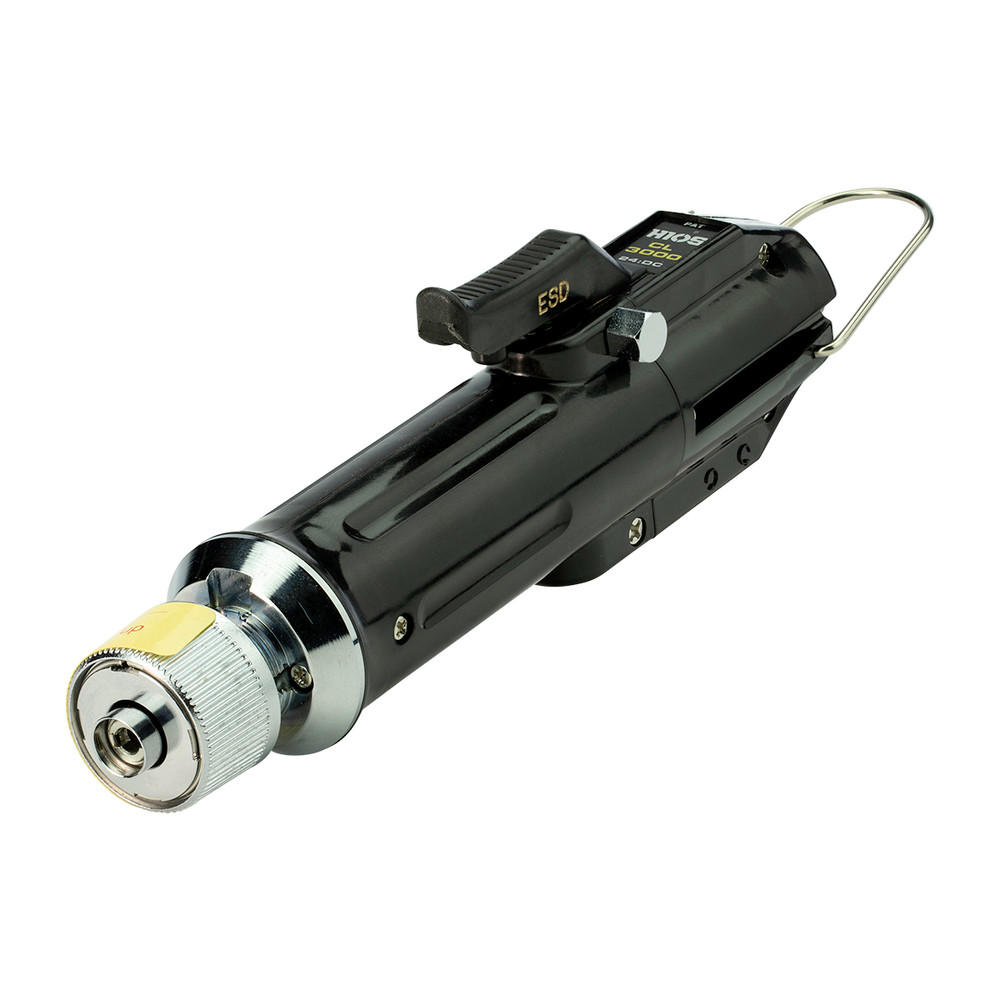

Driver type : ESD (Lever Start)
Drive size: 4mm HIOS
Torque range: 0.3 - 1.7 lbf.in / 3 - 20 N.m
Adjustable RPM : 670 - 1000 r/m
Size: Ø 1.25 inch x 7.25 inch
Weight: 12.4 oz / apprx 37 g
Remarks: other accessories can be optional on the datasheet.
Various models that range from 0.17 lbf.in to 43 lnf.in
Designed for heavy-duty production and delivers reliability and precision torque.
Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
External torque adjustment scale.
Low voltage requirement offers superior life and safe operation.
Available in Lever, Push-to-Start, ESD and models.
Can be connected with the Scout Screw Counter.
Requires a Transformer (power supply).
CL9000 provided with a shockless reaction stand to provide precise torque control and eliminates torque reaction.
