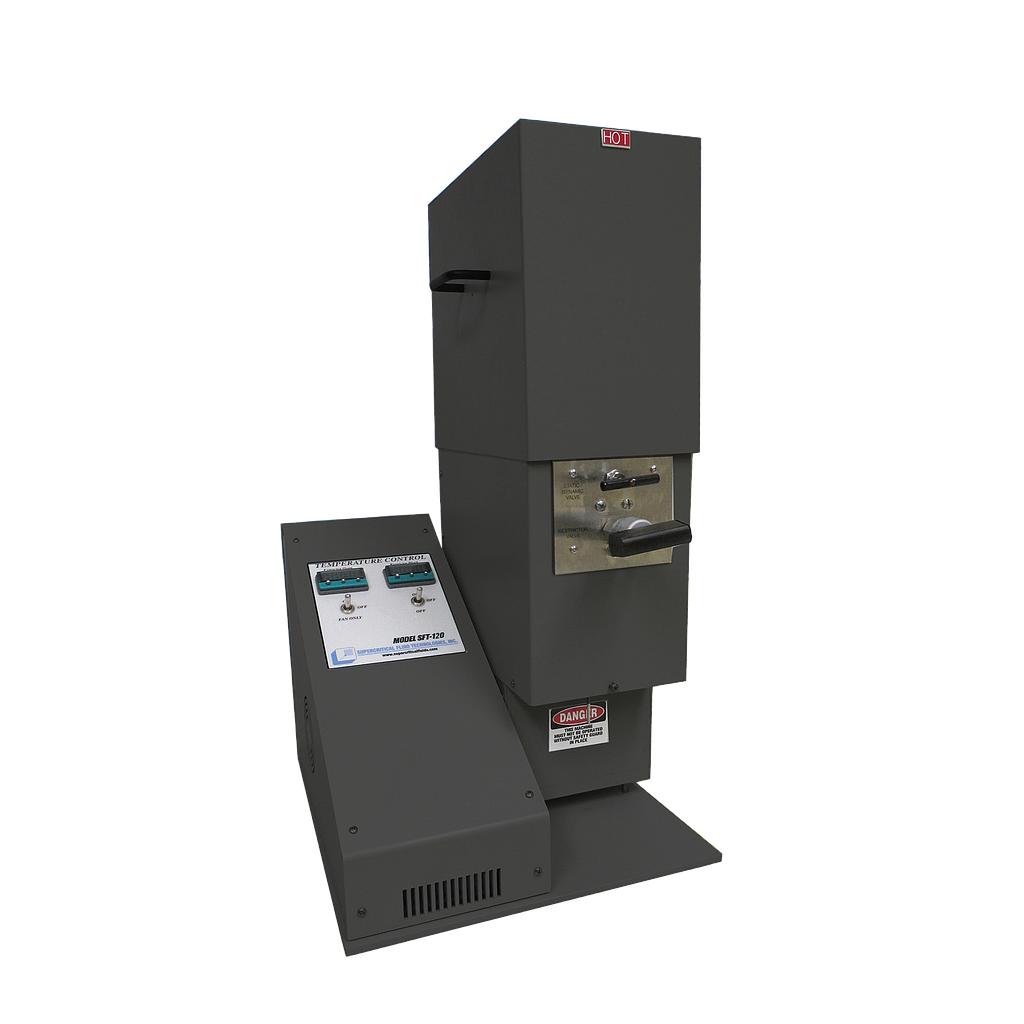

SFT SFT-120 Benchtop Supercritical Carbon Dioxide Extractors

Temperature and Pressure Display: Independent LED displays.

Temperature Range: Ambient to 200°C.

Temperature Precision: +/- 0.5°C.

Operating Pressure: 10,000 psi upper pressure limit.

Front keypad control, with LED display. Constant pressure mode of operation.

Flow Rates: Up to 50 ml/min liquid CO2 (+/- 2% accuracy).

Over Pressure Safeguard: High / Low pressure alarms and rupture disc assembly.

Nex10 High Pressure Pump: High performance, pneumatically driven piston pump rapidly compresses liquid CO2 from tank pressure (750-900 psi) up to the pressures required for SFE, SFR, and other high-pressure applications. The pump operates in a constant pressure mode.

Restrictor Valve: Controls flow precisely; heated up to

200°C; User selectable set point; Resistant to blockage.

Preheater: Improves temperature consistency of the fluid by heating the fluid before it reaches the main pressure vessel.

Extraction Vessel: Accommodates vessels ranging in size from 5 ml to 100 ml. (Up to 1000 ml for the SFT-120XW)

Vessels come with 5 micron frits and are interchangeable.

Collection Vessel: Externally mounted. Many options available. SFT-120 Di
