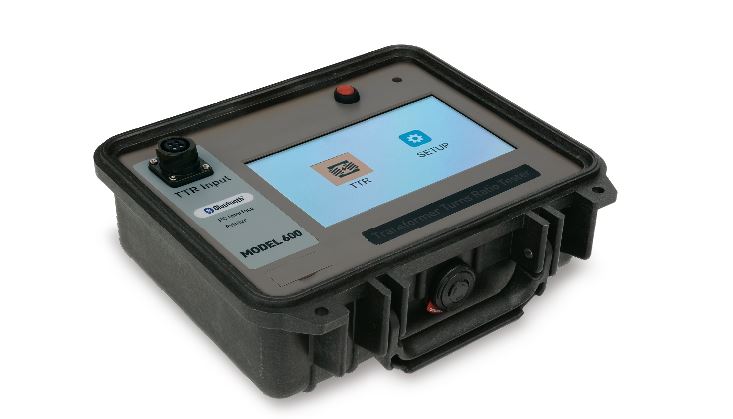

Tekon 600 变压器功率分析仪(40V,2A,单相)

  • 制造商: TEKON
    Model: 600
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




LCD display 1024×600 pixels, 7.0-in color TFT screen (touch panel)
Power(battery) 7.2V/5.2A Li-ion, 12V/2.5A Adaptor
Communication USB, Bluetooth
Print External printer
Data Storage MicroSD(8GB)
Operating
temp/humidity
0°C±45°C, RH 85% max
Storage temp/humidity -20°C±60°C, RH 85% max
Dimension 270(L)×246(W)×124(H) mm
Weight 3.0kg
Type Single-phase
Range for turns ratio
5Vac 1~1,999(0.1%)
2,000~3,999(0.25%)
4,000~15,000(2%)
40Vac 1~1,999(0.1%)
2,000~3,999(0.25%)
4,000~15,000(1%)
Excitation voltage 1V, 5V, 10V, 40V
Excitation current 0~2A
Phase angle
Range: 0~360degree
Accuracy: ±0.2degree+2dgts
Polarity Displayed on screen
Standard
Cable for measurement, 12V/2.5A power adaptor, 7.2V/5.2Ah Li-ion battery,
USB cable, Micro SD card (8GB), portable bag, PC S/W, user’s manual


Details

Download datasheet

Catalog 2020
