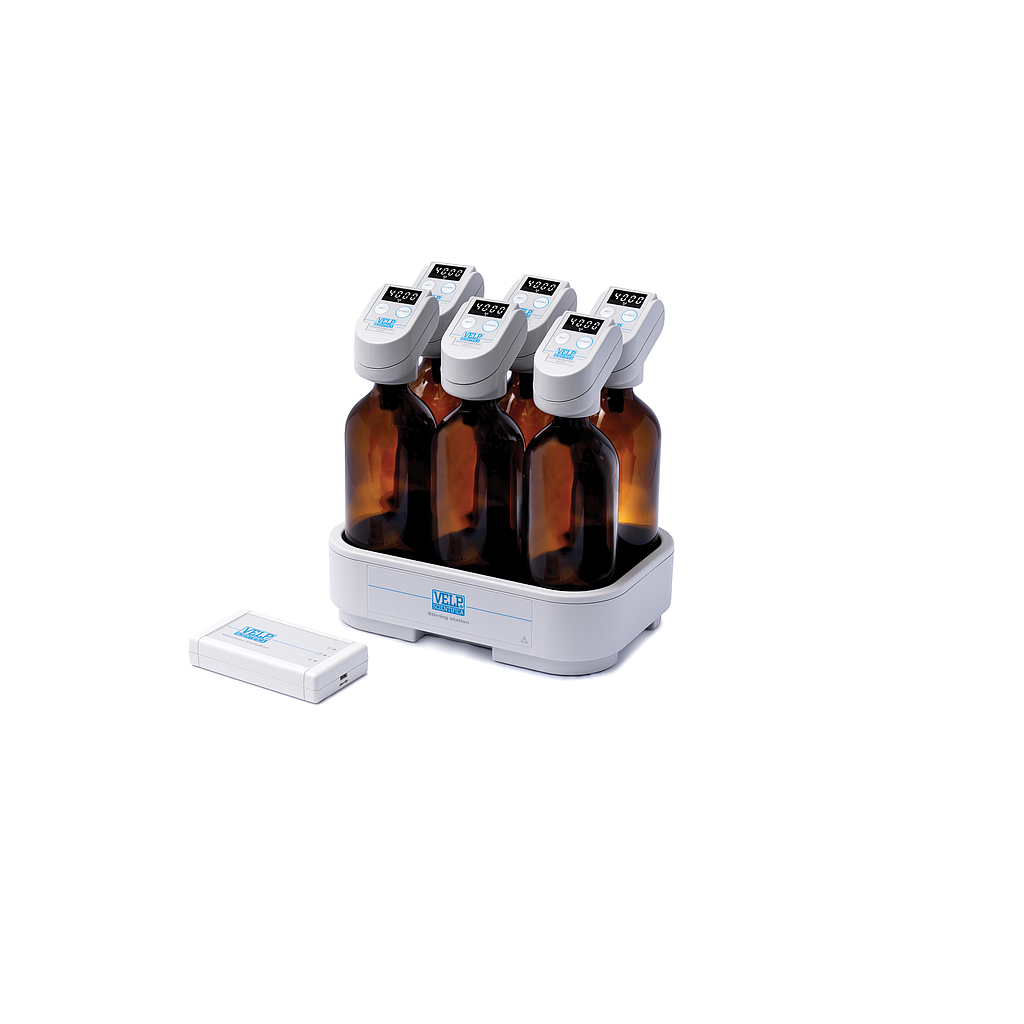

VELP SA10200146 Respirometric Sensor BOD

NUMBER OF SENSORS PER SYSTEM: 6

SENSOR DISPLAY: 4 LED digits

MEASUREMENT: Electronic pressure sensor

TEST TYPOLOGY: BOD

PRESSURE RANGE: 500 ÷ 2000 mbar (hPa)

BOD SCALES: 90, 250, 600, 999, 4000 ppm, higher values after dilution

BOTTLE VOLUMES: 500 ml

DATABOX SENSOR CAPACITY: Up to 400 REPIROMETRIC Sensor

DATABOX POWER SUPPLY: USB / Plug

CONNECTIVITY: Ermes via Wi-Fi / RESPIROSoft™ via USB

SAMPLING TIME: From 30m to 48h, depending on the test duration

MEASURING PERIOD: From 1 to 730 days

DATA STORAGE: On-sensor, RESPIROSoft™ Database, Ermes Cloud

SENSOR CONSTRUCTION MATERIAL: Technopolymer

SENSOR DIMENSIONS (WXHXD): 50x70x70 mm

SENSOR POWER: 2 W

SENSOR BATTERY TYPE: CR 2430

STIRRING STATION POWER SUPPLY: 230V / 50-60Hz or 115V / 60Hz

STIRRING STATION DIMENSIONS (WXHXD): 270x300x185mm

WEIGHT:

Sensor: 80g

Stirring Station: 1Kg

Included:

F102B0153 RESPIROMETRIC Sensor (x6)

A00000402 RESPIROSoft and Wireless DataBox

F10200270 Stirring station, 6 positions 230V/50-60Hz

(with bottles & stirring bars)
